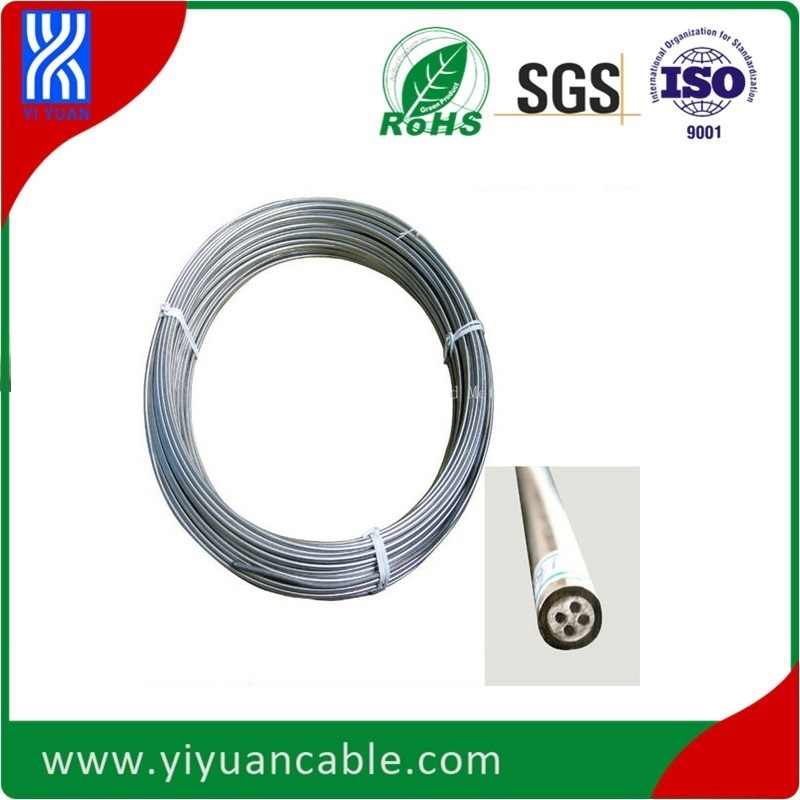

Stainless Steel Sheath E Type Duplex Thermocouple Cable (6.0

  • Stainless Steel Sheath E Type Duplex Thermocouple Cable (6.0mm)
Stainless Steel Sheath E Type Duplex Thermocouple Cable (6.0mm)

Stainless Steel Sheath E Type Duplex Thermocouple Cable (6.0mm)

  • Product description:Stainless Steel Sheath E Type Duplex Thermocouple Cable (6.0mm)
  • INQUIRY

E type sheathed thermocouple cable

Specification:
1.Model:KE2-A-6.0;
2.Graduation Mark:E;
3.Core number:Duplex type( 4cores);
4.Material of the outer protection tube:A-304/321(0Cr18Ni9) ;
Other types of outer protection tube are available:
[I].A-304 or321    [II].B-GH3030   [III].C-GH3039   [ IV].IN-INCONEL600    [V].P-310S  [VI]. HL-316L
5.Diameter of outer tube:6.0mm; ( diameter from 3.0mm to 8.0 mm available )
6.Thickness of outer tube:0.74mm;
7.Inner core element:NiCr/CuNi;
8.Diameter of core wire:0.91mm
9.Limited length for piece:60m;
10. Special requirements can be customized .

Thermocouple temperature tolerance:
1.Class I:
Temperature range:-40°C to 375°C,the tolerance is ±1.5°C;
Temperature range:375°C to 1000°C,the tolerance is± 0.004
2.Class II:
Temperature range:-40°C to 333°C,the tolerance is ±2.5°C;
Temperature range:333°C to 1200°C,the tolerance is±  0.0075
