T type thermocouple cable informations
T type thermocouple cable informations
A Type T thermocouple cable is a specialized type of cable used for temperature measurement,consisting of two dissimilar metals:copper(Cu)and constantan(a copper-nickel alloy).Here are some key characteristics of Type T thermocouple cables:
Composition and Construction
• Positive Leg:Made of 99.95%copper.
• Negative Leg:Made of a copper-nickel alloy,typically containing 55%copper and 45%nickel.
• Insulation:Available in various materials such as PVC,PFA,fiberglass,silicone rubber,or Kapton,depending on the temperature range and environmental requirements.
Temperature Range
• Standard Range:-270°C to+400°C.
• Class 1 Tolerance:±0.5°C or 0.40%of the temperature range.
• Class 2 Tolerance:±1.0°C or 0.75%of the temperature range.
Advantages
• High Accuracy:Type T thermocouples offer high accuracy,especially in the range of-200°C to+200°C.
• Wide Temperature Range:They can measure temperatures from extremely low(-270°C)to moderately high(+400°C)levels.
• Corrosion Resistance:The copper and copper-nickel alloy are resistant to corrosion,making them suitable for various environments.
Limitations
• Limited High-Temperature Use:Above 400°C,the copper leg may oxidize rapidly,limiting its use in high-temperature applications.
• Thermal Conductivity:The high thermal conductivity of copper can affect measurement accuracy in certain applications.
Type T thermocouple cables are versatile and reliable for a wide range of temperature measurement needs,particularly in low-temperature and laboratory settings.
Yiyuan ALL Thermocouple cable Mfr. Model nos.:
|
Model |
Description |
Temperature |
|
GG |
Fiberglass insulation + Fiberglass out sheath |
400°C |
|
GGB |
Fiberglass insulation + Fiberglass out sheath+ SSB braid |
400°C |
|
GB |
Fiberglass insulation + SSB braid |
400°C |
|
FF |
Teflon FEP insulation with FEP out sheath |
200°C |
|
FTF |
Teflon FEP + Copper tinned thread braid + FEP out sheath |
200°C |
|
FFB |
Teflon FEP + FEP out sheath+ SSB braid |
200°C |
|
FB |
FEP insulation+ SSB braid |
200°C |
|
PP |
Teflon PFA insulation with PFA out sheath |
260°C |
|
PTP |
Teflon PFA + Copper tinned thread braid + PFA out sheath |
260°C |
|
PPB |
Teflon PFA + PFA out sheath+ SSB braid |
260°C |
|
PB |
Teflon PFA insulation+ SSB braid |
260°C |
|
VV |
PVC insulation + PVC out sheath |
105°C |
|
FV |
Teflon FEP+ PVC out sheath |
105°C |
|
VVB |
PVC insulation + PVC out sheath+ SSB braid |
105°C |
|
XX |
Silicone rubber insulation + Silicone rubber out sheath |
180°C |
|
PX |
Teflon PFA +Silicone rubber out sheath |
180°C |
|
KK |
Kapton insulation + Kapton insulation |
260°C |
|
HH |
High silica insulation + High silica out sheath |
800°C |
Yiyuan POPULAR type J thermocouple cable model no.
(Click the photo to see the spec.)
|
Model no. |
Description | Temperature |
|

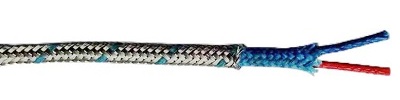

GGB-T |
Fiberglass + Fiberglass + SSB | 400°C |
|
Model no. |
Description | Temperature |
|
FF-T |
Teflon FEP+FEP | 200°C |
|
Model no. |
Description | Temperature |
|
FTF-T |
Teflon FEP+Copper tinned thread +FEP | 200°C |
|
Model no. |
Description | Temperature |
|
PP-T |
Teflon PFA+ PFA | 260°C |
|
Model no. |
Description | Temperature |
|
PBP-T |
Teflon PFA+SSB+PFA | 260°C |
|
Model no. |
Description | Temperature |
|
PTP-T |
Teflon PFA+Tinned copper braid+PFA | 260°C |
|
Model no. |
Description | Temperature |
|
FV-T |
FEP + PVC | 105°C |
|
Model no. |
Description | Temperature |
|

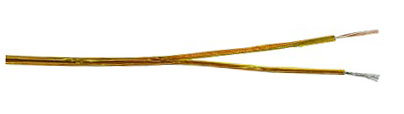

KK-T |
Kapton+Kapton |
260°C |
You can go to our type J thermocouple CABLE LIST by click here!
To know more about thermocouple cable you can DOWNLOAD OUR CATALOGUE by click here!
Know more other thermocouple cable:
Teflon insulated | Fiberglass insulated | PVC insulated|
Silicone Insulated | Polymide insulated | High silica insulated |
|K type | J type | T type |N type| R/S type | E type |B type |
If you have special requirements please feel free to message or email us!
