J type thermocouple cable information

J type thermocouple cable information

A J-type thermocouple cable is a type of temperature-measuring device that consists of two dissimilar metal wires, typically iron (Fe) and constantan (a copper-nickel alloy), joined together at one end to form a junction. This junction generates a voltage proportional to the temperature difference between the junction and the reference end, based on the Seebeck effect.

Key characteristics of J-type thermocouple cables
Temperature range:

J-type thermocouple cables generally operate within the range of -40°C to 750°C (-40°F to 1382°F). However, the actual usable range may be limited by factors such as oxidation of the iron wire at higher temperatures.

Materials:

The positive lead is made of iron, while the negative lead is made of constantan. These materials provide good sensitivity to temperature changes and reasonable stability in various environments.

Color coding:

The positive lead (iron) is usually marked with white insulation, and the negative lead (constantan) is marked with red insulation. This standard color coding helps ensure correct connections and accurate temperature readings.
Insulation and protection:

Various insulation materials can be used to protect the wires and ensure accurate measurements. Common options include PVC for general applications, PTFE for high-temperature and chemical resistance, and glass fiber for extreme conditions.

Applications
J-type thermocouple cables are widely used in various industries due to their moderate temperature range, good sensitivity, and cost-effectiveness. Some typical applications include:
- **Plastics industry**: For monitoring and controlling the temperature of injection molding processes.
- **Food processing**: In ovens, refrigerators, and other equipment where precise temperature control is essential.
- **HVAC systems**: For measuring and regulating temperatures in heating, ventilation, and air conditioning systems.
- **Metalworking**: Used in the heat treatment of metals like steel.

Overall, J-type thermocouple cables are a versatile and reliable choice for temperature measurement in many industrial and commercial settings.

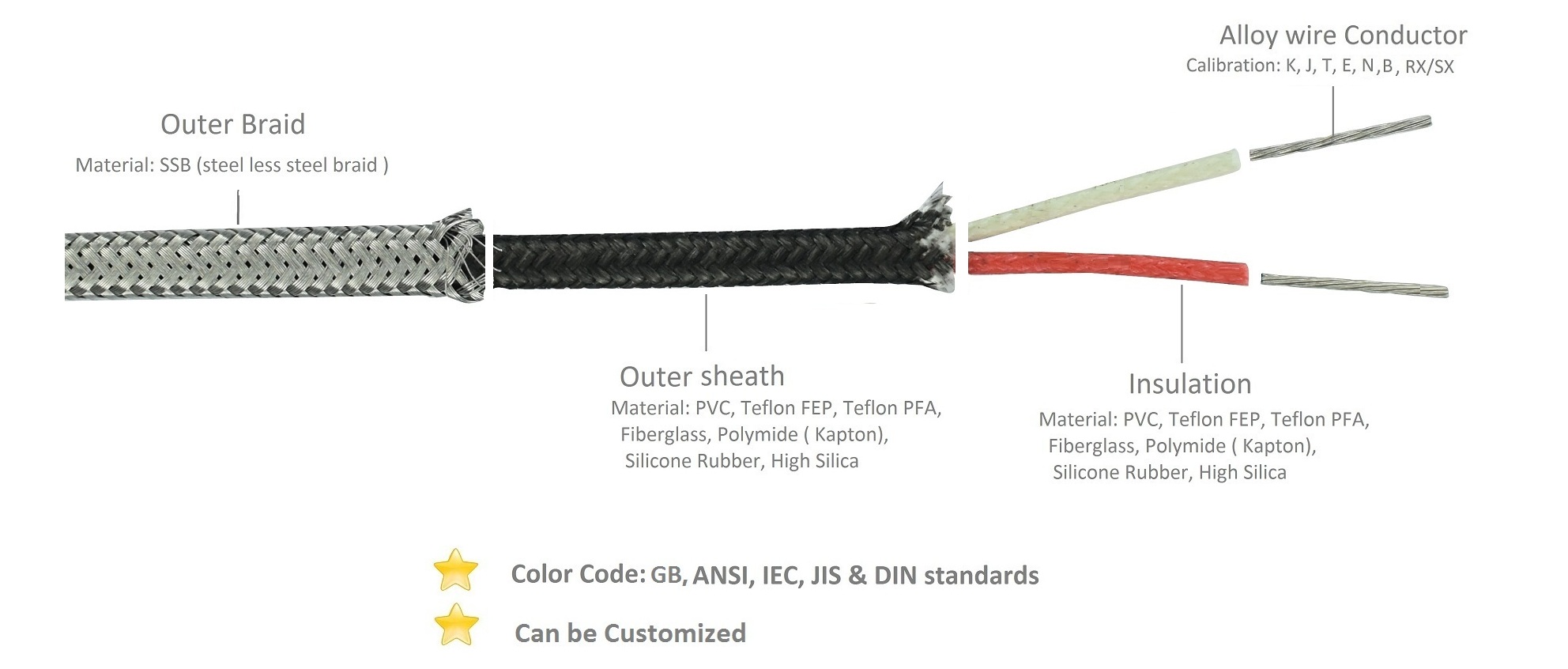

Yiyuan ALL Thermocouple cable Mfr. Model nos.:


Model

Description

Temperature

GG

Fiberglass insulation + Fiberglass out sheath

400°C

GGB

Fiberglass insulation + Fiberglass out sheath+ SSB braid

400°C

GB

Fiberglass insulation + SSB braid

400°C

FF

Teflon FEP insulation with FEP out sheath

200°C

FTF

Teflon FEP + Copper tinned thread braid + FEP out sheath

200°C

FFB

Teflon FEP + FEP out sheath+ SSB braid

200°C

FB

FEP insulation+ SSB braid

200°C

PP

Teflon PFA insulation with PFA out sheath

260°C

PTP

Teflon PFA + Copper tinned thread braid + PFA out sheath

260°C

PPB

Teflon PFA + PFA out sheath+ SSB braid

260°C

PB

Teflon PFA insulation+ SSB braid

260°C

VV

PVC insulation + PVC out sheath

105°C

FV

Teflon FEP+ PVC out sheath

105°C

VVB

PVC insulation + PVC out sheath+ SSB braid

105°C

XX

Silicone rubber insulation + Silicone rubber out sheath

180°C

PX

Teflon PFA +Silicone rubber out sheath

180°C

KK

Kapton insulation + Kapton insulation

260°C

HH

High silica insulation + High silica out sheath

800°C/1100°C


Yiyuan POPULAR type J thermocouple cable model no.

(Click the photo to see the spec.)



Model no.
Description Temperature

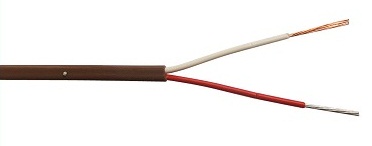

PP-J
Teflon PFA+PFA 260°C

Model no.
Description Temperature

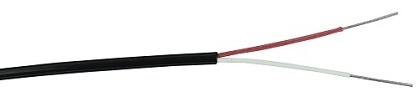

FF-J
Teflon FEP+FEP 200°C


Model no.
Description Temperature

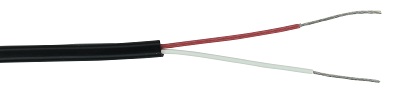

FTF-J
Teflon FEP+Copper tinned thread +FEP 200°C


Model no.
Description Temperature
FFB-J
Teflon FEP+FEP + SSB 200°C


Model no.
Description Temperature
GG-J
Fiberglass + Fiberglass 400°C

Model no.
Description Temperature
GGB-J
Fiberglass + Fiberglass + SSB 400°C


Model no.
Description Temperature
FV-J
FEP + PVC 105°C

You can go to our type J thermocouple CABLE LIST by click here!

To know more about thermocouple cable you can DOWNLOAD OUR CATALOGUE by click here!


Know more other thermocouple cable:


Teflon insulated | Fiberglass insulated | PVC insulated|

Silicone Insulated | Polymide insulated | High silica insulated |

Mineral insulated |


|K type | J type | T type |N type| R/S type | E type |B type |


If you have special requirements please feel free to message or email us!
