K type thermocouple cable information

A Type K thermocouple cable is a widely used temperature measurement tool,composed of two different metal alloys:chromel(nickel-chromium)for the positive leg andalumel(nickel-aluminum)for the negative leg.Here are some key characteristics and applications of Type K thermocouple cables:

Characteristics

• Temperature Range:Type K thermocouples have a broad operating range from-270°C to+1260°C(-454°F to 2300°F),making them suitable for both low and high-temperature measurements.

• Accuracy:

• Class 1:±1.5°C or 0.4%of the reading(whichever is greater).

• Class 2:±2.5°C or 0.75%of the reading.

• Color Code:The positive leg is typically yellow(or green in some international standards),and the negative leg is red(or white).

• Environmental Resistance:Type K thermocouples are durable in oxidizing atmospheres and have good corrosion resistance,but they are not suitable for reducing atmospheres or environments containing sulfur.

Applications

• Industrial Applications:Type K thermocouples are extensively used in industries such as steel manufacturing,petrochemicals,and food processing for measuring temperatures in furnaces,kilns,engines,and boilers.

• Laboratory and Scientific Research:They are used in laboratories for general temperature measurements due to their wide range and reliability.

• Nuclear Applications:Type K thermocouples are popular in nuclear environments because of their relative radiation hardness.

Advantages

• Wide Temperature Range:Suitable for both low and high-temperature measurements.

• Cost-Effective:Type K thermocouples are relatively inexpensive compared to other types like platinum-based thermocouples.

• Versatility:Available in various probe types and configurations,making them suitable for a wide range of applications.

Limitations

• Susceptibility to Oxidation:At temperatures above 800°C,oxidation can cause drift and decalibration.

• Not Suitable for Reducing Atmospheres:Type K thermocouples should be protected by a suitable sheath in reducing or sulfur-containing atmospheres.

Type K thermocouple cables are a popular choice for their wide temperature range,reliability,and versatility,making them suitable for a variety of industrial and scientific applications.

Yiyuan Thermocouple cable Mfr. Model nos.:

Model	Description	Temperature
GG	Fiberglass insulation + Fiberglass out sheath	400°C

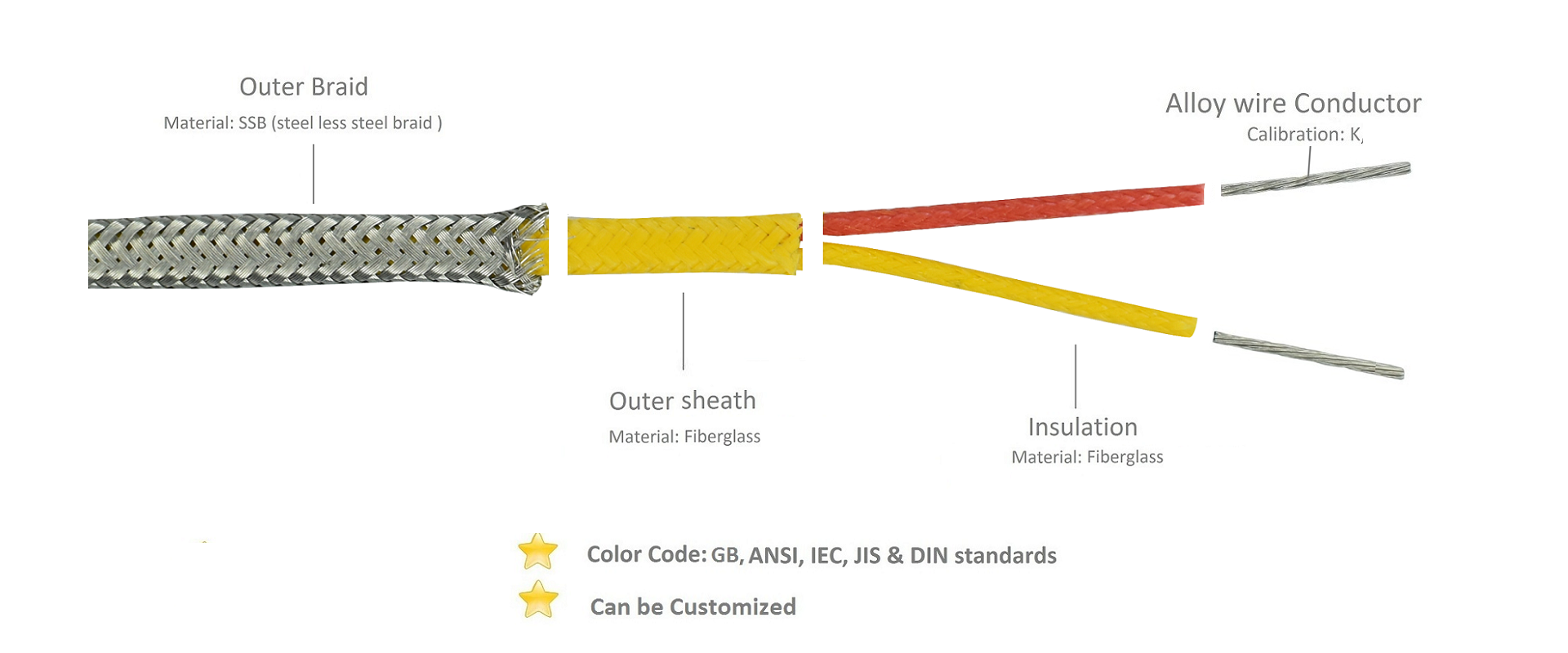

GGB	Fiberglass insulation + Fiberglass out sheath+ SSB braid	400°C
GB	Fiberglass insulation + SSB braid	400°C
FF	Teflon FEP insulation with FEP out sheath	200°C
FTF	Teflon FEP + Copper tinned thread braid + FEP out sheath	200°C

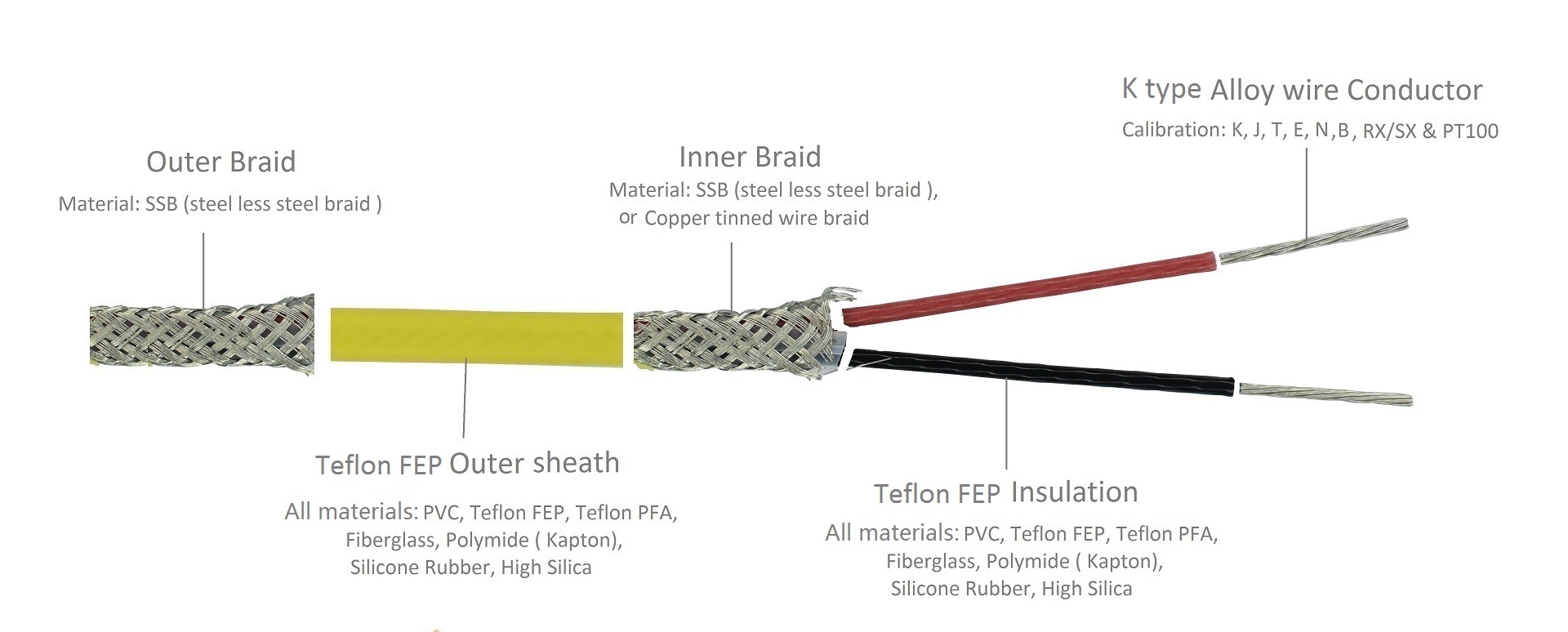

FFB	Teflon FEP + FEP out sheath+ SSB braid	200°C
FB	FEP insulation+ SSB braid	200°C
PP	Teflon PFA insulation with PFA out sheath	260°C
PTP	Teflon PFA + Copper tinned thread braid + PFA out sheath	260°C
PPB	Teflon PFA + PFA out sheath+ SSB braid	260°C
PB	Teflon PFA insulation+ SSB braid	260°C
VV	PVC insulation + PVC out sheath	105°C
FV	Teflon FEP+ PVC out sheath	105°C
VVB	PVC insulation + PVC out sheath+ SSB braid	105°C
XX	Silicone rubber insulation + Silicone rubber out sheath	180°C
PX	Teflon PFA +Silicone rubber out sheath	180°C
KK	Kapton insulation + Kapton insulation	260°C
HH	High silica insulation + High silica out sheath	800°C/1100°

Yiyuan POPULAR type K thermocouple cable model no.

(Click the photo to see the spec.)

Model no.	Description	Temperature
PP-K	Teflon PFA+PFA	260°C

Model no.	Description	Temperature
PTP-K	Teflon PFA+Copper tinned thread+PFA	260°C

Model no.	Description	Temperature
PPB-K	Teflon PFA+PFA + SSB	260°C

Model no.	Description	Temperature
FF-K	Teflon FEP+FEP	200°C

Model no.	Description	Temperature

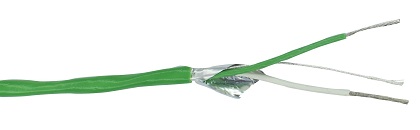

FAF-K	Teflon FEP+AL-pet foil-FEP	200°C

Model no.	Description	Temperature
FTF-K	Teflon FEP+Copper tinned thread +FEP	200°C

Model no.	Description	Temperature
FFB-K	Teflon FEP+FEP + SSB	200°C

Model no.	Description	Temperature
GG-K	Fiberglass + Fiberglass	400°C

Model no.	Description	Temperature
GGB-K	Fiberglass + Fiberglass + SSB	400°C

Model no.	Description	Temperature
VV-K	PVC + PVC	105°C

Model no.	Description	Temperature
PX-KK	PFA + Silicone	180°C

Model no.	Description	Temperature
KK-K	Katon + Kapton	260°C

Model no.	Description	Temperature
HH-K	High silica + High silica	800°C/1100°C

Type K thermocouple CABLE LIST by click here!

DOWNLOAD OUR CATALOGUE by click here!

Know more other thermocouple cables:

Teflon insulated | Fiberglass insulated | PVC insulated|

Silicone Insulated | Polymide insulated | High silica insulated |

Mineral insulated |

|K type | J type | T type |N type| R/S type | E type |B type |

We, Changzhou Yiyuan High Temperature cable Co., ltd. is a China professional K type thermocouple cable , extension cable, compensating cable manufacturer, supplier.

Focus on thermo wire ,cable since 2010 year.

Customized thermocouple cable can be supplied.

We became a famous instrument supplier of thermocouple wire, and RTD sensor extension wire at 2012 year. After ten years development we have exported many cables around the world including Canada, Czekh, Ghana, India, Italy, Malaysia, Iran, Israel, Russia, Singapore, South Africa, Turkey, etc.
