Thermocouple Cable

Thermocouple Cable



(This article is an introduction of Thermocouple extension cable including thermocouple wire cable materials, types, range, specification, color code,  etc.)



A thermocouple extension cable is a specialized type of wire used to extend the signal from a thermocouple probe to a measuring instrument.Here are some key points about it:



Definition and Purpose

• It is used when the thermocouple probe needs to be located at a distance from the measuring instrument,allowing the signal to be transmitted accurately over longer distances without significant loss of signal quality.

• The extension cable is identified by the letter"X"added to the thermocouple type(e.g.,KX for Type K thermocouple extension cable).


|K type | J type | T type |N type| R/S type | E type |B type |

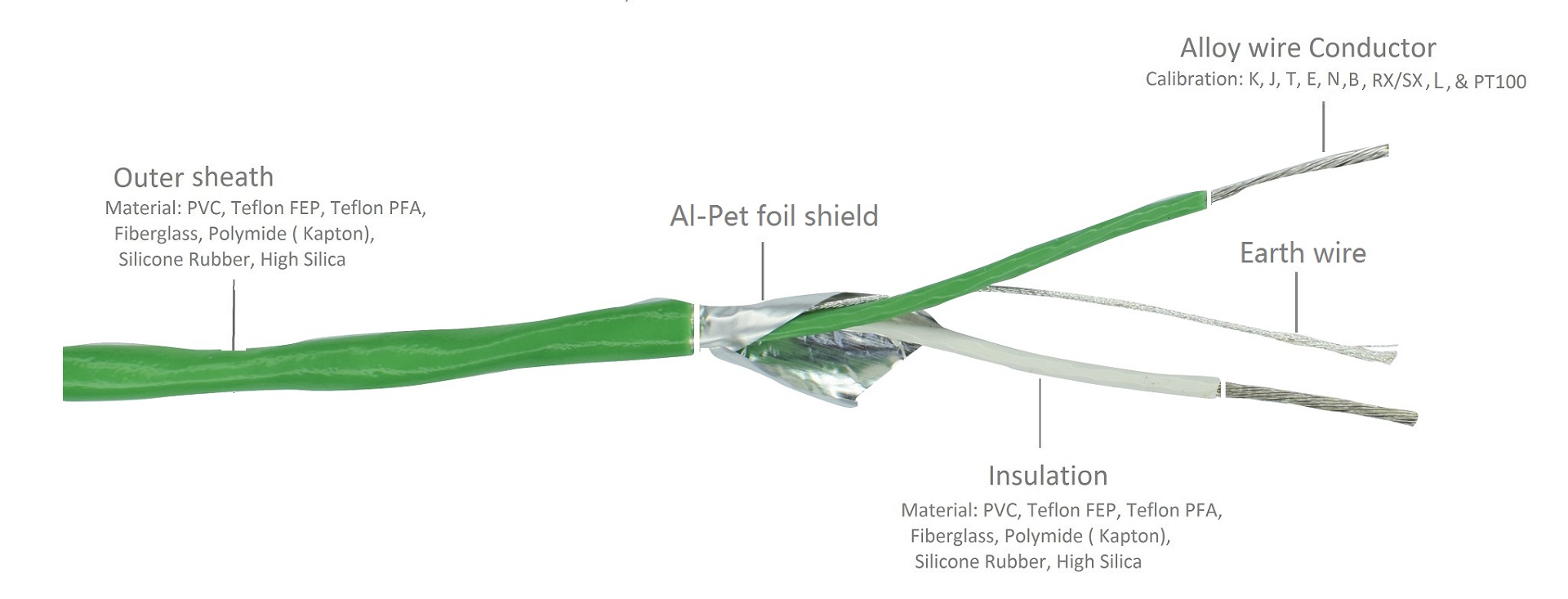

Material and Construction

• It is made from the same materials as the main thermocouple leads.For example,Type K extension cables are made of Chromel(NiCr)and Alumel(NiAl),the same materials used in Type K thermocouples.


Conductor Alloy material

Type

Positive

Negative

J

Fe

Cu-Ni

K

Ni-Cr

Ni-Al

T

Cu

Cu-Ni

E

Ni-Cr

Cu-Ni

N

Ni-Cr-Si

Ni-Si-Mg

R/SX

Cu

Cu-Ni

U

Cu

Cu

B

Cu

Cu

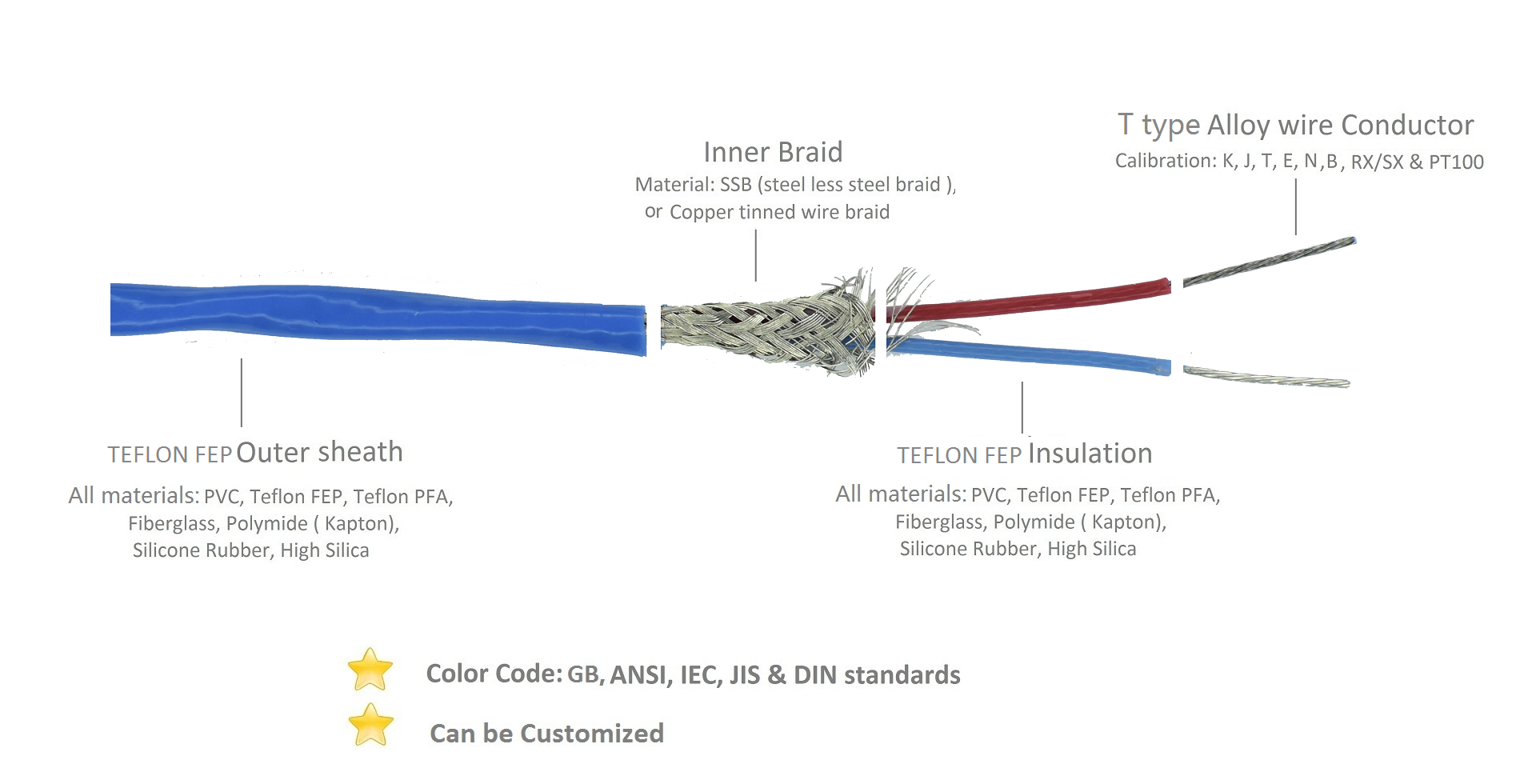

• The conductors are typically insulated with materials like PVC,FEP Teflon,or fiberglass to protect against environmental factors and electrical interference.

Teflon insulated | Fiberglass insulated | PVC insulated|Silicone Insulated | Polymide insulated | High silica insulated |Mineral insulated |



Temperature Range and Standards

• The temperature range of thermocouple extension cables is generally lower than that of the thermocouple itself.For instance,the extension cable can pass a signal representing a higher temperature but should not be exposed to such high temperatures directly.


Model

Description

Temperature

GG

Fiberglass insulation + Fiberglass out sheath

400°C

GGB

Fiberglass insulation + Fiberglass out sheath+ SSB braid

400°C

GB

Fiberglass insulation + SSB braid

400°C

FF

Teflon FEP insulation with FEP out sheath

200°C

FTF

Teflon FEP + Copper tinned thread braid + FEP out sheath

200°C

FFB

Teflon FEP + FEP out sheath+ SSB braid

200°C

FB

FEP insulation+ SSB braid

200°C

PP

Teflon PFA insulation with PFA out sheath

260°C

PTP

Teflon PFA + Copper tinned thread braid + PFA out sheath

260°C

PPB

Teflon PFA + PFA out sheath+ SSB braid

260°C

PB

Teflon PFA insulation+ SSB braid

260°C

VV

PVC insulation + PVC out sheath

105°C

FV

Teflon FEP+ PVC out sheath

105°C

VVB

PVC insulation + PVC out sheath+ SSB braid

105°C

XX

Silicone rubber insulation + Silicone rubber out sheath

180°C

PX

Teflon PFA +Silicone rubber out sheath

180°C

KK

Kapton insulation + Kapton insulation

260°C

HH

High silica insulation + High silica out sheath

800°C/1100°C


• They follow specific standards such as ASTM/ANSI for color coding and DIN 43710 for manufacturing.
Color code: ANSI,IEC ,JIS color code standard

Applications

• These cables are widely used in various industrial applications,including metal processing,power generation,HVAC systems,food processing,pharmaceutical manufacturing,and scientific research.


Importance for Accurate Measurement

• Using the correct thermocouple extension cable ensures accurate temperature readings by maintaining the thermoelectric properties of the circuit.Using a different type of cable or ordinary electrical wire can introduce errors in the measured temperature.
