TC-Teflon FEP/FEP-K type

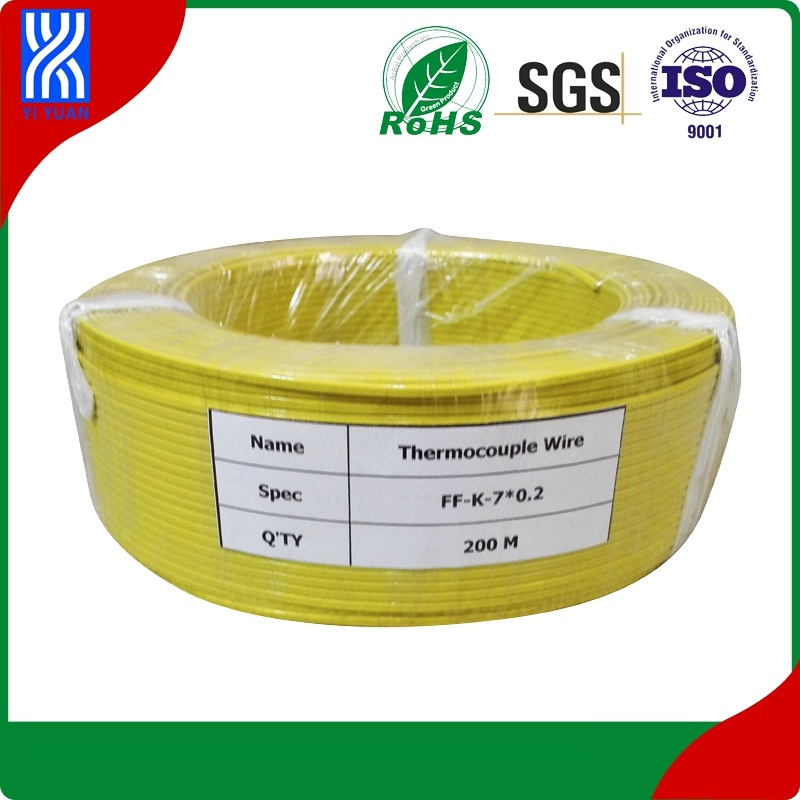

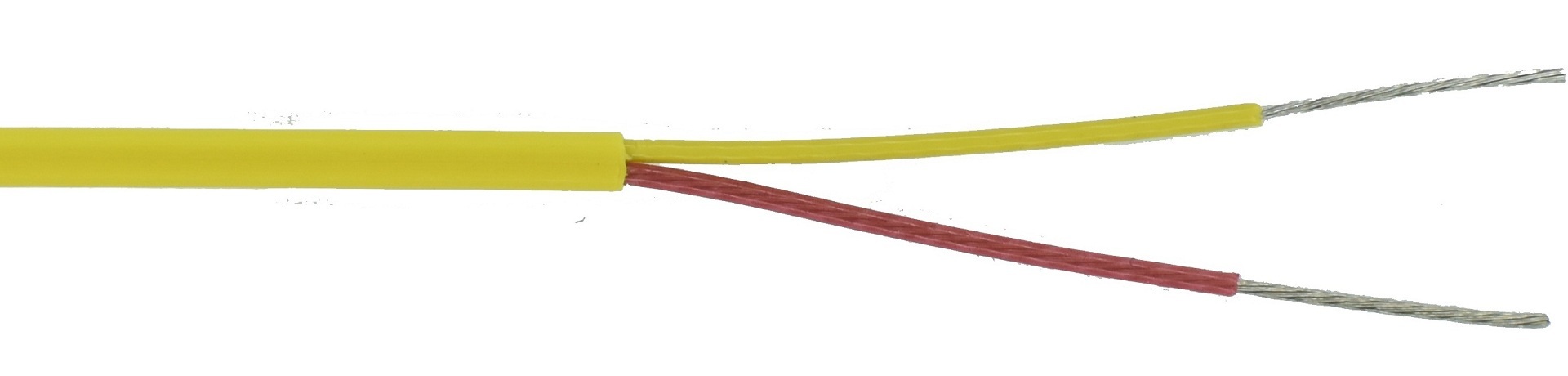

Click the cable pics. above you can see cable details in big size.

You can find more specifications below of this thermocouple cable K type teflon FEP insulated.

<

Material & Dimension Report
Product ID	FF-K -7*0.20
Conductor Material	Kp:Ni-Cr,Kn:Ni-Al
Single Inner Wire DIA	￠0.2mm
Inner Wire Construction	7 Inner Wires Stranded
Insulator Material	Teflon FEP-200°C
Insulator Color	Kp:Red, Kn:White
Cable Construction	Parallel
Jacket Material	Teflon FEP-200°C
Jacket Color	Yellow
Insulated DIA	￠1.0mm
Cable DIA	1.5mm*2.5mm
Net weight	10kg/km

Contact us for your customized thermocouple extension wire:

Whatsapp/Tel/Wechat: +86 13811300279

Email: sales@yiyuancable.com

Description of thermocouple and thermocouple wire, cable

Thermocouple cable is used to manufacture thermocouple probes in order to sense temperature using the point of cold junction compensation (cjc end).

Thermocouple extension cable is used to carry the signal from the thermocouple sensor to the readout devices and maintain a high degree of accuracy. The material of thermocouple extension wire must match the material used in the positive and negative leg of the thermocouple type (e.g. type K,J,N,etc.) being used in the application.

The thermocouple is a sensor to measure temperature. It consists of two dissimilar metals that are joined together at the sensing end. Different thermocouple types (e.g. J or K type thermocouple wire) use different mixtures of metals in the cable.

Our thermocouple cable, thermocouple extension cable, thermocouple compensating cable can bear temperature up to 850 deg. C.

Color standard

Color standard of ANSI code, IEC code,etc are available

Click below to check color code and wire insulation identification details:

https://www.yiyuancable.com/new/Color-code-standards.html
