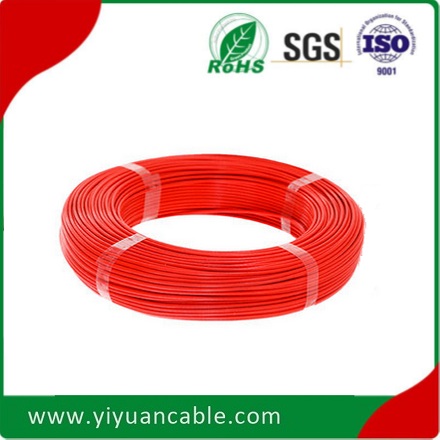

High temperature wire AF200

Product Item : Model no.:AF200
FEP/Silver-plated conductor,Solid or stranded
Rated voltage：600V
working temperature：-65～+200℃
Color：Red/yellow/blue/white/black/green/brown, etc
Product description：High temperature wire Model no.: AF200 FEP/Silver-plated conductor,Solid or stranded Standard：Q/IRMV1－2008 Rated voltage：600V working temperature：-65～+200℃ Color：Red/yellow/blue/white/
INQUIRY

High temperature wire and cable represent a vast range of wires which continue to perform at increased and elevated temperatures.

Yiyuan has designed a specialized family of wire and cable products that can take the heat. All of these high temperature cables can withstand applications in continuous heat.

Our family of high temperature wire & cable is available in many configurations and gauge sizes for power or control applications commonly used for the following:

• Casting furnaces

• Weld robotic cells

• Electric arc furnaces

• Refineries

• Blast furnaces

• Die cast plants

• Utility power stations

• Fire protection equipment

• Plastic molding plants

• Food industry professional ovens

Normal demands on high temperature cable is working under 200 °C and 250 °C we use teflon FEP/PFA and silicon to be the insualtion materials. But we still can produce high temperature cable reach up to 800°C with high silica material. If you need please contact us for specification!

Below is our high temperature cable infor. of types,size,cable structures,specifications,etc.

If you have special requirements please feel free to message or email us!

High temperature cable types:

Model	Product name	Temperature	Voltage
AF200	FEP copper silver-plated wire	200°C	600V
AF200X	FEP copper tinned wire	200°C	600V
AF250	PFA nickel or silver plated copper wire	250°C	600V
AFT250	PTFE silver, nickeled copper	250°C	600V
AGR	Silicon tinned copper wire	200°C	600V
AGRP	Silicon+Glass Fiber+Silicon	200°C	600V
AFF	FEP+FEP or PFA+PFA	250°C	300V
YGZ	Silicon+Silicon	200°C	300V
YGZF	FEP+ Silicon	200°C	300V
AFPF	PFA+braid+PFA	250°C	300V
YGZP	Silicon +braid+Silicon	200°C	300V
YGZPF	FEP +braid+Silicon	200°C	300V

High temperature cable structure:

High temperature wire Specification, structure and technical parameters：

nominal cross-section area （mm² ）	Conductor structure Number/Wire Diameter（mm）	Insulation thickness （mm）	outer diameter on the average （mm）	DC Resistance of Conductor at 20 Temperature 20 ℃ （Ω/km）	Packaging length （m）
0.014	7/0.05	0.15	0.45	1343	500
0.035	7/0.08	0.15	0.60	525	500
0.05	7/0.10	0.15	0.60	330	500
0.08	7/0.12	0.20	0.78	227	500
0.12	7/0.15	0.20	0.85	150	500
0.20	7/0.20	0.25	1.10	83.5	200
0.35	19/0.16	0.25	1.30	49.5	200
0.50	19/0.18	0.25	1.40	36.0	200
0.75	19/0.23	0.25	1.70	22.7	200
1.0	19/0.26	0.25	1.80	19.0	200
1.20	19/0.28	0.30	2.0	15.3	200
1.50	19/0.32	0.30	2.20	11.7	200
2.0	19/0.37	0.30	2.45	9.45	100
2.5	19/0.41	0.40	2.95	6.86	100
4.0	37/0.37	0.40	3.40	4.51	100
6.0	37/0.45	0.50	4.20	3.05	100
8.0	133/0.28	0.50	5.20	2.16	100
10	133/0.32	0.50	5.80	1.68	100
16	133/0.39	0.60	7.00	1.13	100
20	133/0.45	0.60	8.0	0.886	100
25	196/0.40	0.6	8.8	0.734	100
35	494/0.30	0.7	10.4	0.511	100
50	396/0.40	0.8	12.2	0.358	100
70	551/0.40	1.0	14.6	0.270	100
95	760/0.40	1.2	17.2	0.210	100
0.03	1/0.20	0.15	0.50	560	500
0.05	1/0.26	0.17	0.60	386.9	500
0.07	1/0.30	0.20	0.70	245	500
0.12	1/0.40	0.20	0.80	146.9	500
0.2	1/0.50	0.25	1.0	94	500
0.3	1/0.60	0.30	1.20	65.3	500
0.5	1/0.80	0.3	1.40	36.7	500
0.75	1/0.97	0.26	1.50	24.7	500
1.13	1/1.20	0.30	1.80	16.5	500
Note: According to the technical agreement between the two parties, products of other specifications can be produced
