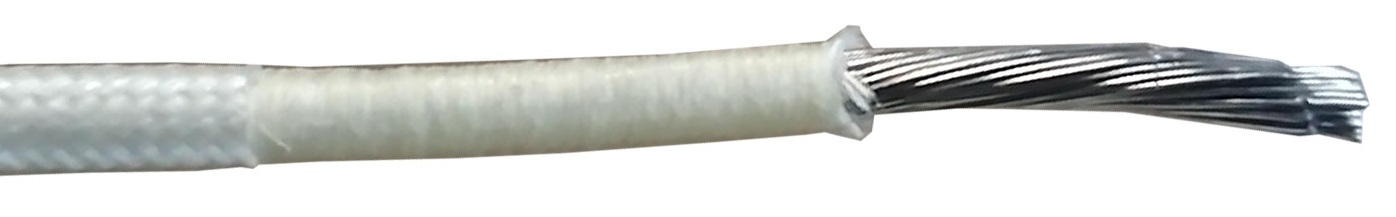

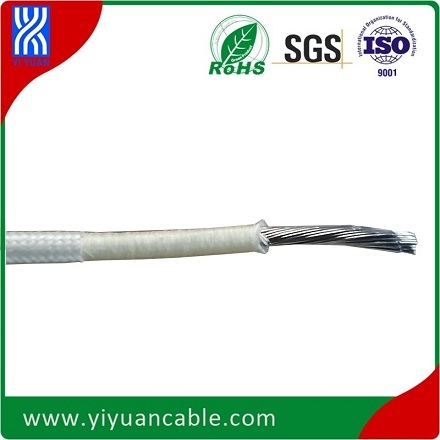

High temp. wire -Fiberglass-nickel

Product Item : Model no.:G-N-2mm2
Conductor:pure nickel
Insulation:Fiberglass wrapping + Fiberglass braid
Temperature range: 0℃-400℃
MOQ:500M
Product description：This High temperature wire is fiberglass insulated including Fiberglass wrapping with Fiberglass braid,which can bear 400 ℃ with pure nickel
INQUIRY

If you want to get the data sheet of this type wire or have special requirements please feel free to contact us!

Whatsapp/Tel/Wechat: +86 1 3811300279

Email: sales@yiyuancable.com

Available size: 0.5mm2, 0.75mm2, 1mm2, 1.5mm2, 2mm2, 2.5mm2, 4mm2, 6mm2

Description of High temperature cable

High temperature wire and cable represent a vast range of wires which continue to perform in high temperatures.

Yiyuan has designed a specialized family of wire and cable products that can take the heat. All of these high temperature cables can withstand applications in continuous heat.

Our family of high temperature wire & cable is available in many configurations and gauge sizes for power or control applications .

For demands of high temperature wire,cable working under 200 °C and 250 °C we use teflon FEP/PFA and silicone rubber to be the insualtion materials.

For demands of high temperature wire,cable working under 400 °C we use Fiberglass to be the insualtion materials.

For demands of under 800 °C we use High silica to be the insualtion materials.

Below is our regularl high temperature wire model no. forms with structures, Temperature,etc.

Our factory Mfr. model no.:

Model	Description	Temperature	Voltage
G-N-400	Fiberglass + Pure Nickel conductor	400°C	600V
G-NC-400	Fiberglass + Copper nickel plated conductor	400°C	600V
G-SC-400	Fiberglass + Copper silver plated conductor	400°C	600V
GG-2NC/SC-400	Fiberglass + Fiberglass + Conductors	400°C	600V
GB-2N-400	Fiberglass + SS braid + two cores pure nickel conductor	400°C	600V
P-NC-260	Teflon PFA + Copper nickel plated conductor	260	600V
P-SC-260	Teflon PFA + Copper silver plated conductor	260	600V
PP-2NC/SC-260	Teflon PFA + PFA+ two cores conductors	260	600V
F-NC-200	Teflon FEP + Copper nickel plated conductor	200	600V
F-SC-200	Teflon FEP+ Copper silver plated conductor	200	600V
FF-2NC/SC-200	Teflon FEP+ FEP + two cores conductor	200	600V
H-NC-800	High silica + Copper nickel plated conductor	800	600V
H-SC-800	High silica + Copper silver plated conductor	800	600V
HH-2NC/SC-800	High silica + High silica + two cores conductors	800	600V
X-TC-180	Silicon + Copper tinned conductor	180	600V
XX-2TC-180	Silicon + Silicon + two cores Copper tinned conductors	180	600V

Other popular Named Model no. in the market:

Model	Description	Temperature	Voltage
AF200	FEP copper silver-plated wire	200°C	600V
AF200X	FEP copper tinned wire	200°C	600V
AF250	PFA nickel or silver plated copper wire	250°C	600V
AFT250	PTFE silver, nickeled copper	250°C	600V
AGR	Silicon tinned copper wire	200°C	600V
AGRP	Silicon+Glass Fiber+Silicon	200°C	600V
AFF	FEP+FEP or PFA+PFA	250°C	300V
YGZ	Silicon+Silicon	200°C	300V
YGZF	FEP+ Silicon	200°C	300V
AFPF	PFA+braid+PFA	250°C	300V
YGZP	Silicon +braid+Silicon	200°C	300V
YGZPF	FEP +braid+Silicon	200°C	300V
