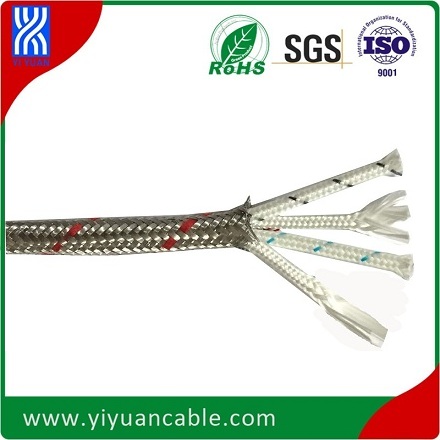

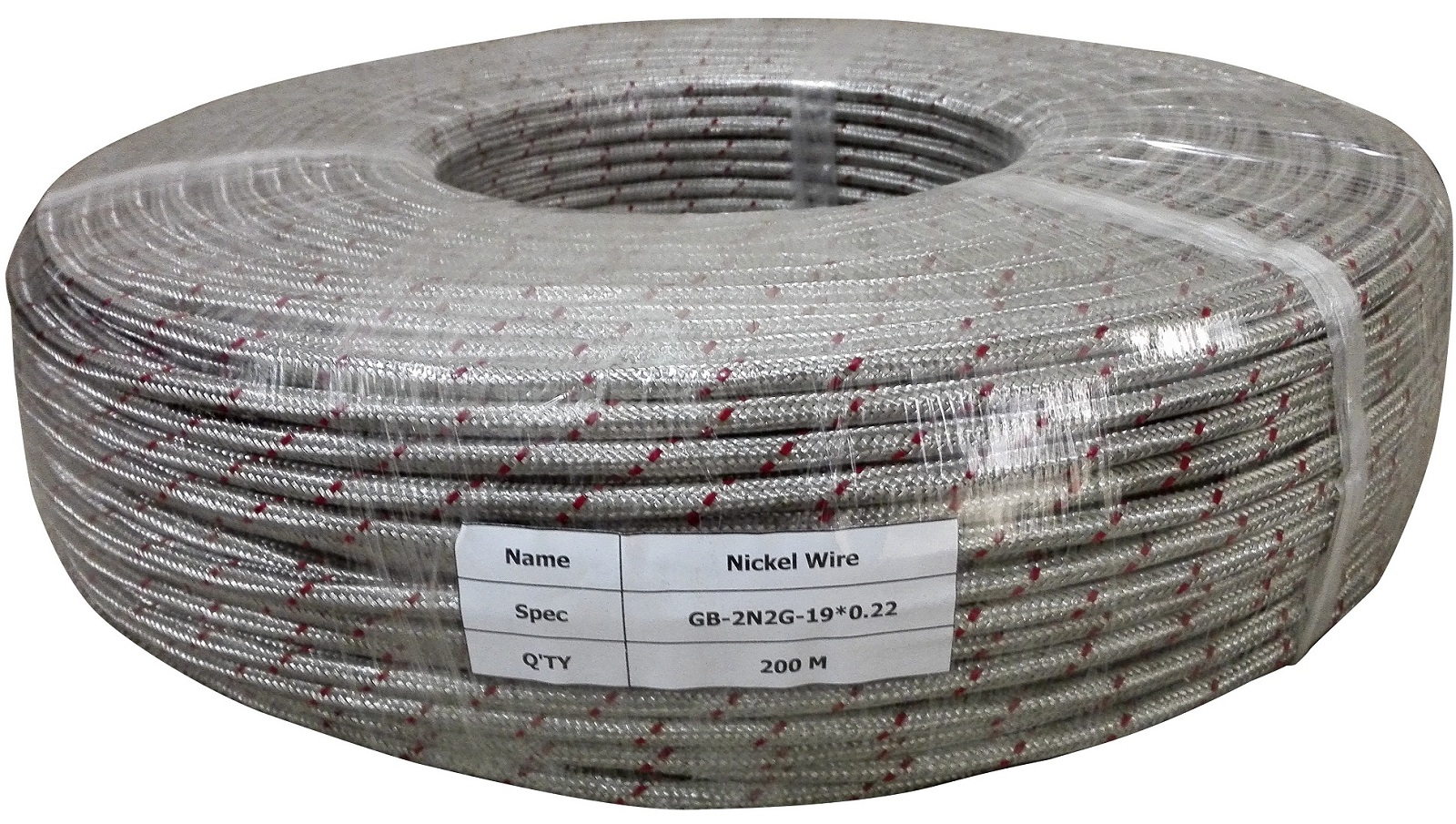

This high temperature cable is Fiberglass insulated + SS braid with pure nickel conductor.
Specification data sheet
Product
ID
Nickel Heating
Wire
Ni
Single Inner
Wire DIA
Inner Wire
Construction
Insulator
Material
Insulator
Color
Filling
Material
Cable
Construction
Outer
Shielded Material
Jacket Color
Insulated DIA
6.8mm
Date:2015.05.07
Conductor
Material
0.22mm
19 Inner Wires
Stranded
Fiberglass (Wrap
twice and Braid once)
#1:White Trace Black,
#2: White Trace Blue
2 Fiberglass Tubes
2 Wires & 2 Tubes
Stranded
Stainless steel
Trace Red
2.6mm
Cable DIA
Description of High temperature cable
High temperature wire and cable represent a vast range of wires which continue to perform in high temperatures.
Yiyuan has designed a specialized family of wire and cable products that can take the heat. All of these high temperature cables can withstand applications in continuous heat.
Our family of high temperature wire & cable is available in many configurations and gauge sizes for power or control applications .
For demands of high temperature wire,cable working under 200 °C and 250 °C we use teflon FEP/PFA and silicone rubber to be the insualtion materials.
For demands of high temperature wire,cable working under 400 °C we use Fiberglass to be the insualtion materials.
For demands of under 800 °C we use High silica to be the insualtion materials.
Below is our regularl high temperature wire model no. forms with structures, Temperature,etc.
If you have special requirements please feel free to message or email us!
Whatsapp/Tel/Wechat: +86 13811300279
Email: sales@yiyuancable.com
Our factory Mfr. model no.:
|
Model |
Description |
Temperature |
Voltage |
|
G-NC-400 |
Fiberglass + Copper nickel plated conductor |
400°C |
600V |
|
G-SC-400 |
Fiberglass + Copper silver plated conductor |
400°C |
600V |
|
GG-2NC/SC-400 |
Fiberglass + Fiberglass + Conductors |
400°C |
600V |
|
GB-2N-400 |
Fiberglass + SS braid + two cores pure nickel conductor |
400°C |
600V |
|
P-NC-260 |
Teflon PFA + Copper nickel plated conductor |
260 |
600V |
|
P-SC-260 |
Teflon PFA + Copper silver plated conductor |
260 |
600V |
|
PP-2NC/SC-260 |
Teflon PFA + PFA+ two cores conductors |
260 |
600V |
|
F-NC-200 |
Teflon FEP + Copper nickel plated conductor |
200 |
600V |
|
F-SC-200 |
Teflon FEP+ Copper silver plated conductor |
200 |
600V |
|
FF-2NC/SC-200 |
Teflon FEP+ FEP + two cores conductor |
200 |
600V |
|
H-NC-800 |
High silica + Copper nickel plated conductor |
800 |
600V |
|
H-SC-800 |
High silica + Copper silver plated conductor |
800 |
600V |
|
HH-2NC/SC-800 |
High silica + High silica + two cores conductors |
800 |
600V |
|
X-TC-180 |
Silicon + Copper tinned conductor |
180 |
600V |
|
XX-2TC-180 |
Silicon + Silicon + two cores Copper tinned conductors |
180 |
600V |
|
|
|
|
|
Other popular Named Model no. in the market:
|
Model |
Description |
Temperature |
Voltage |
|
AF200 |
FEP copper silver-plated wire |
200°C |
600V |
|
AF200X |
FEP copper tinned wire |
200°C |
|
|
AF250 |
PFA nickel or silver plated copper wire |
250°C |
|
|
AFT250 |
PTFE silver, nickeled copper |
250°C |
600V |
|
AGR |
Silicon tinned copper wire |
200°C |
600V |
|
AGRP |
Silicon+Glass Fiber+Silicon |
200°C |
600V |
|
AFF |
FEP+FEP or PFA+PFA |
250°C |
300V |
|
YGZ |
Silicon+Silicon |
200°C |
300V |
|
YGZF |
FEP+ Silicon |
200°C |
300V |
|
AFPF |
PFA+braid+PFA |
250°C |
300V |
|
YGZP |
Silicon +braid+Silicon |
200°C |
300V |
|
YGZPF |
FEP +braid+Silicon |
200°C |
300V |
