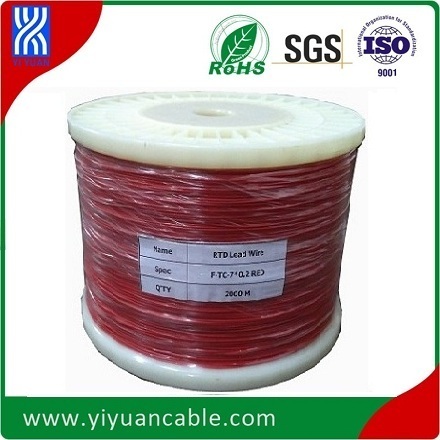

High temperature wire-Teflon FEP

Product Item : Model no.:F-TC-7*0.2
Conductor:Tinned copper
Insulation:Teflon FEP
Temperature range:0℃- 200℃
MOQ:500M
Product description：This high temperature wire is Teflon FEP insulated. Temperature : 200℃ Copper tinned conductor 7*0.2 Used for RTD sensor Delivery time:7 days Payment:TT in advanced
INQUIRY

This high temperature wire is Teflon FEP insulated,which can bear 200℃.

It is used for RTD lead wire.

Size: AWG 24 (7*0.2)

Conductor: Copper tinned

Insulation :Teflon FEP

Due to the Teflon FEP / PFA characters of anti-heat resistant, flexibility, extreme resistance to chemical attack and optical transparency, they are routinely used for high temperature wire under the temperature 200℃

Description of High temperature cable

High temperature wire and cable represent a vast range of wires which continue to perform in high temperatures.

Yiyuan has designed a specialized family of wire and cable products that can take the heat. All of these high temperature cables can withstand applications in continuous heat.

Our family of high temperature wire & cable is available in many configurations and gauge sizes for power or control applications .

For demands of high temperature wire,cable working under 200 °C and 250 °C we use teflon FEP/PFA and silicone rubber to be the insualtion materials.

For demands of high temperature wire,cable working under 400 °C we use Fiberglass to be the insualtion materials.

For demands of under 800 °C we use High silica to be the insualtion materials.

Below is our regularl high temperature wire model no. forms with structures, Temperature,etc.

If you have special requirements please feel free to message or email us!

Whatsapp/Tel/Wechat: +86 1 3811300279

Email: sales@yiyuancable.com

Our factory Mfr. model no.:

Model	Description	Temperature	Voltage
G-NC-400	Fiberglass + Copper nickel plated conductor	400°C	600V
G-SC-400	Fiberglass + Copper silver plated conductor	400°C	600V
GG-2NC/SC-400	Fiberglass + Fiberglass + Conductors	400°C	600V
GB-2N-400	Fiberglass + SS braid + two cores pure nickel conductor	400°C	600V
P-NC-260	Teflon PFA + Copper nickel plated conductor	260	600V
P-SC-260	Teflon PFA + Copper silver plated conductor	260	600V
PP-2NC/SC-260	Teflon PFA + PFA+ two cores conductors	260	600V
F-NC-200	Teflon FEP + Copper nickel plated conductor	200	600V
F-SC-200	Teflon FEP+ Copper silver plated conductor	200	600V
FF-2NC/SC-200	Teflon FEP+ FEP + two cores conductor	200	600V
H-NC-800	High silica + Copper nickel plated conductor	800	600V
H-SC-800	High silica + Copper silver plated conductor	800	600V
HH-2NC/SC-800	High silica + High silica + two cores conductors	800	600V
X-TC-180	Silicon + Copper tinned conductor	180	600V
XX-2TC-180	Silicon + Silicon + two cores Copper tinned conductors	180	600V

Other popular Named Model no. in the market:

Model	Description	Temperature	Voltage
AF200	FEP copper silver-plated wire	200°C	600V
AF200X	FEP copper tinned wire	200°C	600V
AF250	PFA nickel or silver plated copper wire	250°C	600V
AFT250	PTFE silver, nickeled copper	250°C	600V
AGR	Silicon tinned copper wire	200°C	600V
AGRP	Silicon+Glass Fiber+Silicon	200°C	600V
AFF	FEP+FEP or PFA+PFA	250°C	300V
YGZ	Silicon+Silicon	200°C	300V
YGZF	FEP+ Silicon	200°C	300V
AFPF	PFA+braid+PFA	250°C	300V
YGZP	Silicon +braid+Silicon	200°C	300V
YGZPF	FEP +braid+Silicon	200°C	300V
