Industrial E Type Simplex 4.0mm Diameter Sheathed Thermocouple Cable

Product description：Industrial E Type Simplex 4.0mm Diameter Sheathed Thermocouple Cable
INQUIRY

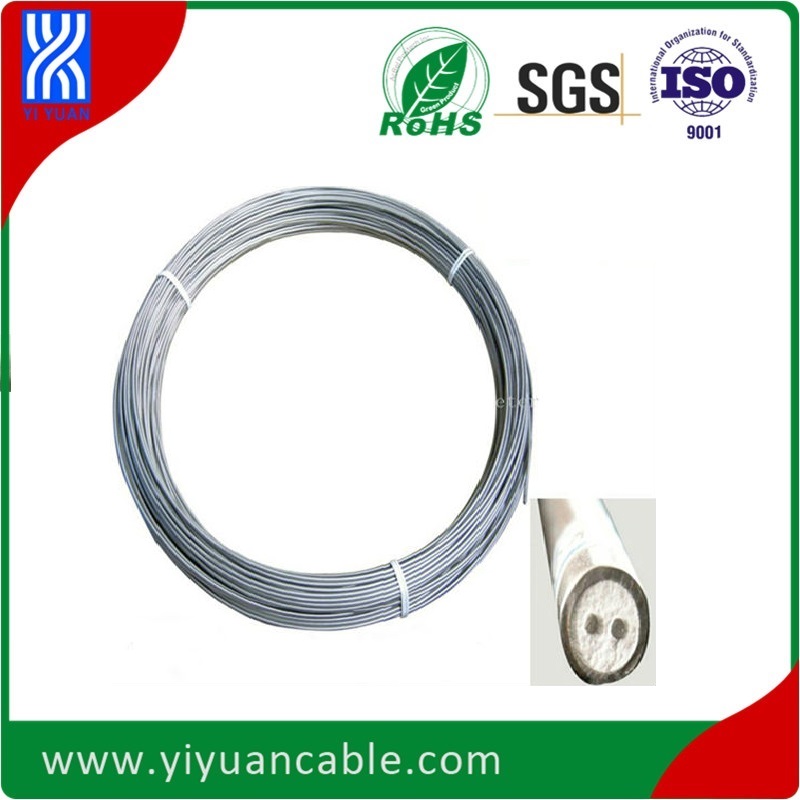

4.0mm diameter sheathed thermocouple cable

Specification:
1.Model:KE-A-4.0;
2.Graduation Mark:E;
3.Wire number:Simplex type( 2 cores);
4.Material of the outer protection tube:A-304/321(0Cr18Ni9) ;

Other types of outer protection tube are available:

[I].A-304 or321 [II].B-GH3030 [III].C-GH3039 [ IV].IN-INCONEL600 [V].P-310S [V]. HL-316L
5.Diameter of outer tube:4.0mm; ( diameter from 0.5mm to 8.0mm available )
6.Thickness of outer tube:0.45mm;
7.Inner core element:NiCr/CuNi;
8.Diameter of core wire:0.64mm
9.Limited length for piece:130m;
10. Special requirements can be customized .

Thermocouple temperature tolerance:
1.Class I:
Temperature range:-40°C to 375°C,the tolerance is ±1.5°C;
Temperature range:375°C to 1000°C,the tolerance is± 0.004
2.Class II:
Temperature range:-40°C to 333°C,the tolerance is ±2.5°C;
Temperature range:333°C to 1200°C,the tolerance is± 0.0075
