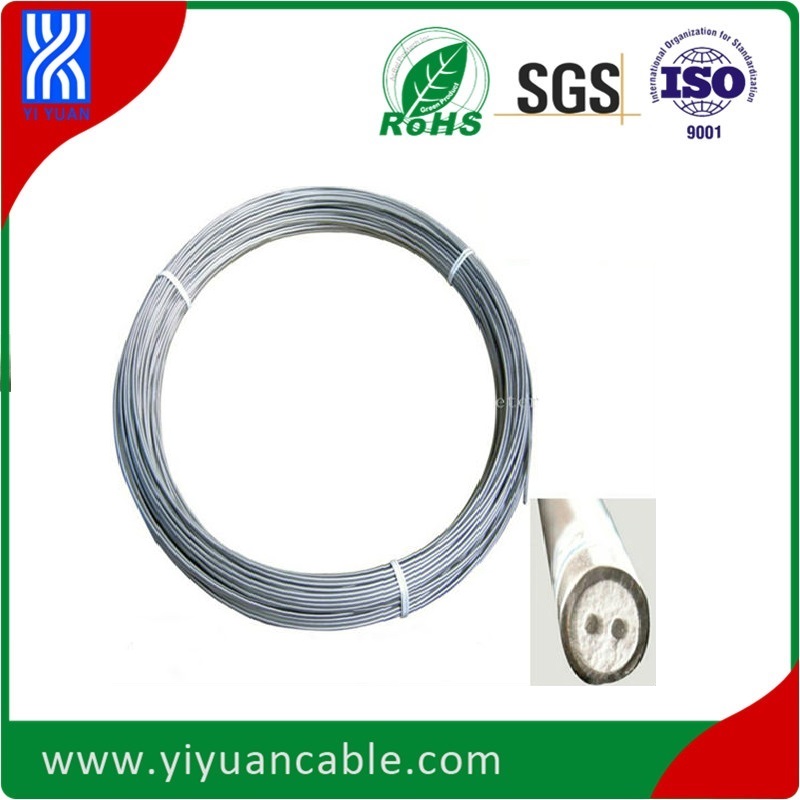

Industrial J Type 0.5mm Diameter Simplex 2-Core Mi Thermocouple Cable

Product description：Industrial J Type 0.5mm Diameter Simplex 2-Core Mi Thermocouple Cable
INQUIRY

Specification:
1.Model:KJ-HL-0.5;
2.Graduation Mark:J;
3.Core wire number:Simplex type( 2 cores);
4.Material of the outer protection tube:HL-316L(00Cr17Ni14Mo2) ;
Other types of outer protection tube are available:
[I].A-304 or321 [II].B-GH3030 [III].C-GH3039 [ IV].IN-INCONEL600 [V].P-310S [V]. HL-316L
5.Diameter of outer tube:0.5mm;(diameter from 0.5mm to 8.0mm available)
6.Thickness of outer tube:0.08mm;
7.Inner core element:Fe/CuNi;
8.Diameter of core wire:0.10mm
9.Limited length for piece:100m;
10. Special requirements can be customized .

Thermocouple temperature tolerance:
1.Class I:
Temperature range:-40°C to 375°C,the tolerance is ±1.5°C;
Temperature range:375°C to 750°C,the tolerance is± 0.004
2.Class II:
Temperature range:-40°C to 333°C,the tolerance is ±2.5°C;
Temperature range:333°C to 750°C,the tolerance is± 0.0075
