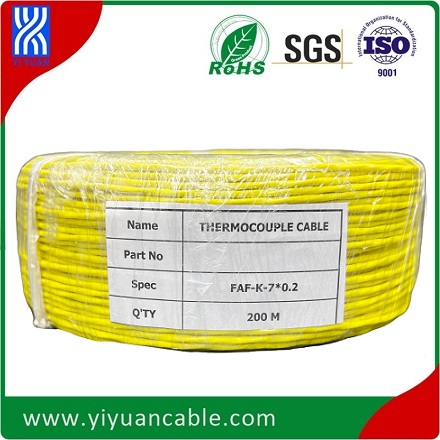

K type FEP/Al-Pet foil/FEP-24F

Product Item : Model no.: FAF-K-24F
FEP insulation
with AL-PET foil
Delivery time:15 days
MOQ:500M

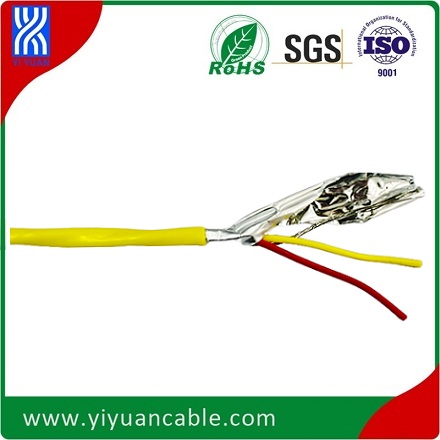

Product description：K type thermocouple extension cable Teflon FEP insulation + AL-pet foil + FEP out sheath 24AWG 7*0.2 ANSI color code
INQUIRY

Material & Dimension Pre-Report
Cable type	Thermocuople K type cable
Product ID	FAF-K-7*0.2
Conductor Material	Kp:Ni-Cr,Kn:Ni-Al
Single Conductor DIA	￠0.2mm
Conductor Construction	7 Inner wires stranded
Earth wire	With earth wire
Insulator Material	Teflon FEP 200℃
Insulator Color	Kp:Red, Kn:Yellow
Cable Construction	1 Pair stranded cable
Out sheath Material	Teflon FEP 200℃
Out sheath color	Yellow
Overall Dia.	￠2.8mm

Yiyuan POPULAR Thermocouple cable Mfr. Model nos.:

Model	Description	Temperature
GG	Fiberglass insulation + Fiberglass out sheath	400°C
GGB	Fiberglass insulation + Fiberglass out sheath+ SSB braid	400°C
F	Teflon FEP insulation	200°C
FF	Teflon FEP insulation with FEP out sheath	200°C
FAF	Teflon FEP insulation + AL-pet foil shield + Teflon FEP	200°C
FTF	Teflon FEP + Copper tinned thread braid + FEP out sheath	200°C
FBF	Teflon FEP + SSB + FEP out sheath	200°C
FSF	Teflon FEP + Silver plated copper thread braid + FEP out sheath	200°C
FFB	Teflon FEP + FEP out sheath+ SSB braid	200°C
FGB	Teflon FEP + Fiberglass + SSB braid	200°C
PP	Teflon PFA insulation with PFA out sheath	260°C
PAP	Teflon PFA + Al-foil + PFA out sheath	260°C
PTP	Teflon PFA + Copper tinned thread braid + PFA out sheath	260°C
PPTP	Teflon PFA + PFA+ Copper tinned thread braid + PFA	260°C
PBP	Teflon PFA + SSB + PFA out sheath	260°C
PPB	Teflon PFA + PFA out sheath+ SSB braid	260°C
VV	PVC insulation + PVC out sheath	105°C
FV	Teflon FEP+ PVC out sheath	105°C
VVB	PVC insulation + PVC out sheath+ SSB braid	105°C
XX	Silicone rubber insulation + Silicone rubber out sheath	180°C
XBX	Silicone rubber insulation + SSB+ Silicone rubber out sheath	180°C
FX	Teflon FEP +Silicone rubber out sheath	180°C
PX	Teflon PFA +Silicone rubber out sheath	180°C
KK	Kapton insulation + Kapton insulation	260°C
HH	High silica insulation + High silica out sheath	800°C/1100°C
