K type Teflon-Fiberglass-SSB-20F

Product Item : Model:FGB-K-20F
Fep/Fiberglass/SSB
Stranded conductor 7*0.3mm
MOQ:500m
Delivery time: 15 days
Product description：This K type Thermocouple cable is FEP + fiberglass + SS braid, AWG 20, stranded 7*0.3mm
INQUIRY

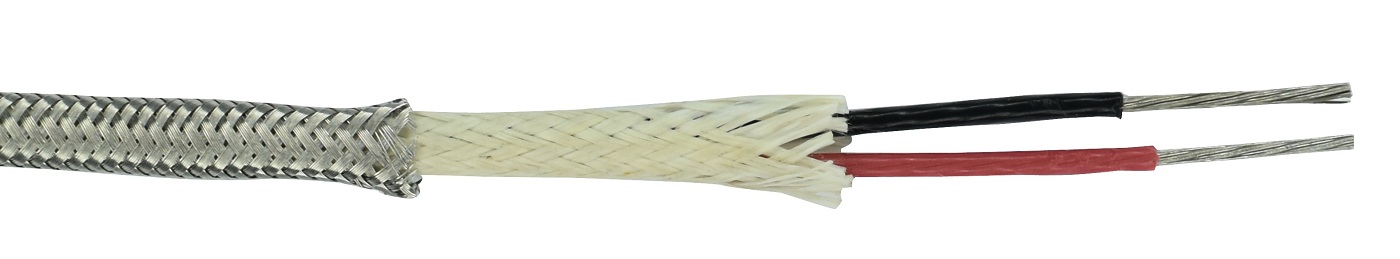

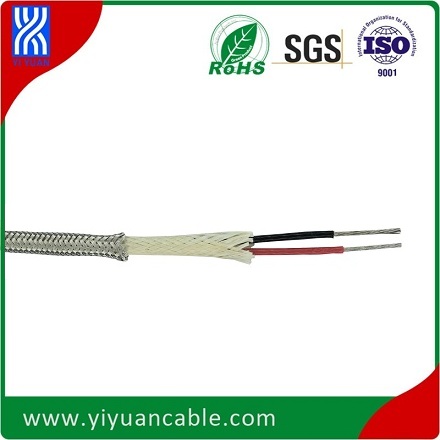

This Thermocouple cable is K type Teflon FEP insulation with Fiberglass out sheath and SSB of AWG 20, stranded 7*0.3mm.

Material & Dimension Pre-Report
Cable type	K type Thermocouple cable
Model no.	FGB-K-20F
Conductor Material	Kp:Ni-Cr,Kn:Ni-Al
Single Inner Wire DIA	￠0.30mm
Inner Wire Construction	7 Inner Wires Stranded
Insulator Material	Teflon FEP-200°C
Insulator Color	Kp: Red, Kn: Black
Insulated DIA	￠1.4mm
Filling Material	Fiberglass
Jacket Material	Fiberglass Braided
Jacket Color	White
Jacket Size	2.0mm*3.4mm
Over Braid Material	Stainless Steel Braid
Cable Construction	Parallel
Cable Size	2.4mm*3.8mm

Yiyuan POPULAR Thermocouple cable Mfr. Model nos.:

Model	Description	Temperature
GG	Fiberglass insulation + Fiberglass out sheath	400°C
GGB	Fiberglass insulation + Fiberglass out sheath+ SSB braid	400°C
GB	Fiberglass insulation + SSB braid	400°C
FF	Teflon FEP insulation with FEP out sheath	200°C
FTF	Teflon FEP + Copper tinned thread braid + FEP out sheath	200°C
FFB	Teflon FEP + FEP out sheath+ SSB braid	200°C
FGB	Teflon FEP + Fiberglass + SSB	200°C
FB	FEP insulation+ SSB braid	200°C
PP	Teflon PFA insulation with PFA out sheath	260°C
PTP	Teflon PFA + Copper tinned thread braid + PFA out sheath	260°C
PPB	Teflon PFA + PFA out sheath+ SSB braid	260°C
PB	Teflon PFA insulation+ SSB braid	260°C
VV	PVC insulation + PVC out sheath	105°C
FV	Teflon FEP+ PVC out sheath	105°C
VVB	PVC insulation + PVC out sheath+ SSB braid	105°C
XX	Silicone rubber insulation + Silicone rubber out sheath	180°C
PX	Teflon PFA +Silicone rubber out sheath	180°C
KK	Kapton insulation + Kapton insulation	260°C
HH	High silica insulation + High silica out sheath	800°C
