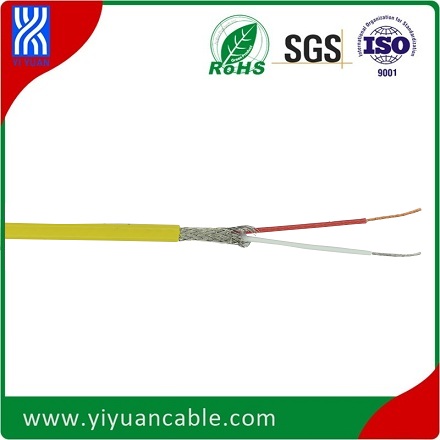

Thermocable-K-FEP/Tinned copper/FEP

Material & Dimension Pre-Report
Cable type	K type Thermocouple cable
Product ID	FTF-K-20F
Conductor Material	Kp:Ni-Cr,Kn:Ni-Al
Single Conductor DIA	￠0.3mm
Conductor Construction	7 Inner wires stranded
Insulator Material	Teflon FEP-200°C
Insulator Color	Kp:Red, Kn:White
Insulation Dia.	1.4mm
Inner braid	Copper-tinned wire braid
Cable Construction	1 Pair parallel cable
Out sheath Material	Teflon FEP-200°C
Out sheath color	Yellow
Overall Size	2.6mm*4.0mm

Yiyuan POPULAR Thermocouple cable Mfr. Model nos.:

Model	Description	Temperature
GG	Fiberglass insulation + Fiberglass out sheath	400°C
GGB	Fiberglass insulation + Fiberglass out sheath+ SSB braid	400°C
F	Teflon FEP insulation	200°C
FF	Teflon FEP insulation with FEP out sheath	200°C
FAF	Teflon FEP insulation + AL-pet foil shield + Teflon FEP	200°C
FTF	Teflon FEP + Copper tinned thread braid + FEP out sheath	200°C
FBF	Teflon FEP + SSB + FEP out sheath	200°C
FSF	Teflon FEP + Silver plated copper thread braid + FEP out sheath	200°C
FFB	Teflon FEP + FEP out sheath+ SSB braid	200°C
FGB	Teflon FEP + Fiberglass + SSB braid	200°C
PP	Teflon PFA insulation with PFA out sheath	260°C
PAP	Teflon PFA + Al-foil + PFA out sheath	260°C
PTP	Teflon PFA + Copper tinned thread braid + PFA out sheath	260°C
PPTP	Teflon PFA + PFA+ Copper tinned thread braid + PFA	260°C
PBP	Teflon PFA + SSB + PFA out sheath	260°C
PPB	Teflon PFA + PFA out sheath+ SSB braid	260°C
VV	PVC insulation + PVC out sheath	105°C
FV	Teflon FEP+ PVC out sheath	105°C
VVB	PVC insulation + PVC out sheath+ SSB braid	105°C
XX	Silicone rubber insulation + Silicone rubber out sheath	180°C
XBX	Silicone rubber insulation + SSB+ Silicone rubber out sheath	180°C
FX	Teflon FEP +Silicone rubber out sheath	180°C
PX	Teflon PFA +Silicone rubber out sheath	180°C
KK	Kapton insulation + Kapton insulation	260°C
HH	High silica insulation + High silica out sheath	800°C
