TC-PFA/PFA-K type-26F
TC-PFA/PFA-K type-26F
- Product Item : Model:PP-K-24F
- Teflon PFA/ Teflon PFA
- Stranded conductor 7*0.15mm
- MOQ:500m
- Delivery time: 10 days

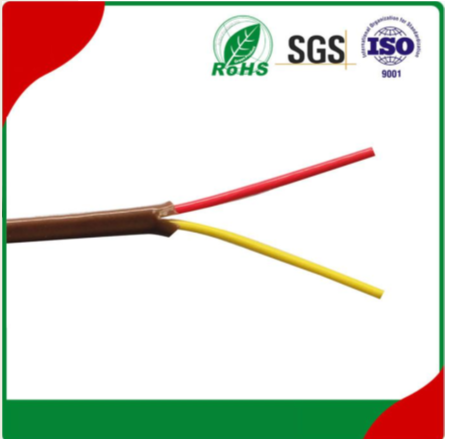

- Product description：This K type Thermocouple duplex wire,cable is teflon PFA insulated and PFA out sheath of AWG26.
Conductor Alloy material
|
Type |
Positive |
Negative |
|
J |
Fe |
Cu-Ni |
|
K |
Ni-Cr |
Ni-Al |
|
T |
Cu |
Cu-Ni |
|
E |
Ni-Cr |
Cu-Ni |
|
N |
Ni-Cr-Si |
Ni-Si-Mg |
|
R/SX |
Cu |
Cu-Ni |
|
U |
Cu |
Cu |
|
B |
Pt-30%Rh |
Pt-60% Rh |
ANSI color code: TC grade
|
Type |
Postive |
Negative |
Out sheath |
|
J |
White |
Red |
Brown |
|
K |
Yellow |
Red |
Brown |
|
T |
Blue |
Red |
Brown |
|
E |
Violet |
Red |
Brown |
|
N |
Orange |
Red |
Brown |
|
R/SX |
\ |
\ |
\ |
|
U |
\ |
\ |
\ |
|
B |
\ |
\ |
\ |
ANSI color code: Extension cable grade
|
Type |
Postive |
Negative |
Out sheath |
|
J |
White |
Red |
Black |
|
K |
Yellow |
Red |
Yellow |
|
T |
Blue |
Red |
Blue |
|
E |
Violet |
Red |
Violet |
|
N |
Orange |
Red |
Orange |
|
R/SX |
Black |
Red |
Green |
|
U |
Black |
Red |
White |
|
B |
Grey |
Red |
Grey |
IEC color code :TC grade
|
Type |
Postive |
Negative |
Out sheath |
|
J |
Black |
White |
Black |
|
K |
Green |
White |
Green |
|
T |
Brown |
White |
Brown |
|
E |
Violet |
White |
Violet |
|
N |
Pink |
White |
Pink |
|
R/SX |
Orange |
White |
Orange |
|
U |
White |
Red |
White |
|
B |
Grey |
White |
Grey |
IEC color code :Extension cable grade
|
Type |
Postive |
Negative |
Out sheath |
|
J |
Black |
White |
Blue |
|
K |
Green |
White |
Blue |
|
T |
Brown |
White |
Blue |
|
E |
Violet |
White |
Blue |
|
N |
Pink |
White |
Blue |
|
R/SX |
Orange |
White |
Blue |
|
U |
White |
Red |
White |
|
B |
Grey |
White |
Blue |
