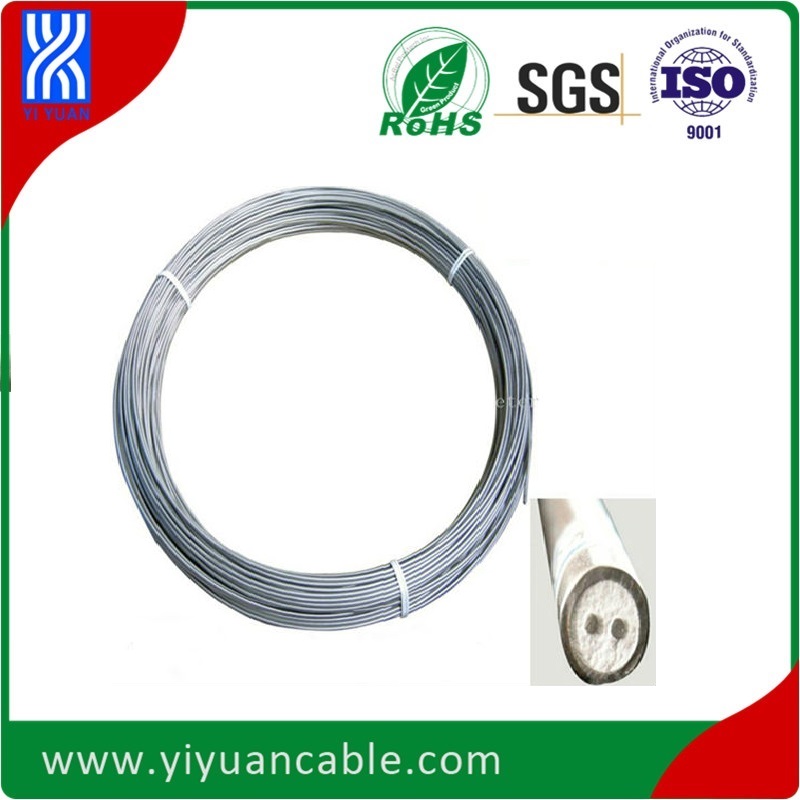

Stainless Steel Sheath K Type 4.0mm Simplex 2-Core Mi Thermo
Stainless Steel Sheath K Type 4.0mm Simplex 2-Core Mi Thermocouple Cable
- Product description：MI insulated thermocouple cable
4.0mm MI thermocouple cable
mineral insulated thermocouple cable
MI cable
Specification:
1.Model:KK-A-4.0;
2.Graduation Mark:K;
3.Wire number:Simplex type( 2 cores);
4.Material of the outer protection tube:A-304/321(0Cr18Ni9) ;
Other types of outer protection tube are available:
[I].A-304 or321 [II].B-GH3030 [III].C-GH3039 [ IV].IN-INCONEL600 [V].P-310S [VI]. HL-316L
5.Diameter of outer tube:4.0mm;( diameter from 0.5mm to 12.7mm available)
6.Thickness of outer tube:0.56mm;
7.Inner core element:NiCr/NiSi;
8.Diameter of core wire:0.64mm
9.Limited length for piece:130m;
10. Special requirements can be customized .
Thermocouple temperature tolerance:
1.Class I:
Temperature range:-40°C to 375°C,the tolerance is ±1.5°C;
Temperature range:375°C to 1000°C,the tolerance is± 0.004
2.Class II:
Temperature range:-40°C to 333°C,the tolerance is ±2.5°C;
Temperature range:333°C to 1200°C,the tolerance is± 0.0075
3.Class III:
Temperature range:-167°C to 40°C,the tolerance is ±2.5°C;
Temperature range:-200°C to -167°C,the tolerance is± 0.015
mineral insulated thermocouple cable
MI cable
Specification:
1.Model:KK-A-4.0;
2.Graduation Mark:K;
3.Wire number:Simplex type( 2 cores);
4.Material of the outer protection tube:A-304/321(0Cr18Ni9) ;
Other types of outer protection tube are available:
[I].A-304 or321 [II].B-GH3030 [III].C-GH3039 [ IV].IN-INCONEL600 [V].P-310S [VI]. HL-316L
5.Diameter of outer tube:4.0mm;( diameter from 0.5mm to 12.7mm available)
6.Thickness of outer tube:0.56mm;
7.Inner core element:NiCr/NiSi;
8.Diameter of core wire:0.64mm
9.Limited length for piece:130m;
10. Special requirements can be customized .
Thermocouple temperature tolerance:
1.Class I:
Temperature range:-40°C to 375°C,the tolerance is ±1.5°C;
Temperature range:375°C to 1000°C,the tolerance is± 0.004
2.Class II:
Temperature range:-40°C to 333°C,the tolerance is ±2.5°C;
Temperature range:333°C to 1200°C,the tolerance is± 0.0075
3.Class III:
Temperature range:-167°C to 40°C,the tolerance is ±2.5°C;
Temperature range:-200°C to -167°C,the tolerance is± 0.015
