321 Stainless Steel Sheath J Type Duplex 6.0 Mi Thermocouple

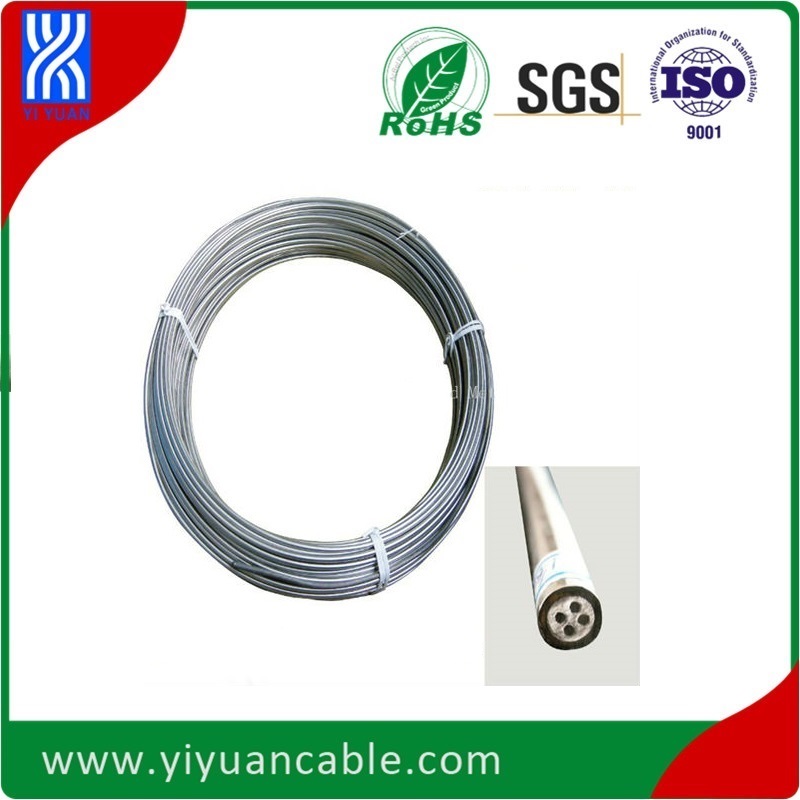

321 Stainless Steel Sheath J Type Duplex 6.0 Mi Thermocouple Cable
- Product description：321 Stainless Steel Sheath J Type Duplex 6.0 Mi Thermocouple Cable
321 duplex mi cable
J type
Specification:
1.Model:KJ2-A-6.0;
2.Graduation Mark:J;
3.Wire number:Duplex type( 4 cores);
4.Material of the outer protection tube:A-304/321(0Cr18Ni9) ;
Other types of outer protection tube are available:
[I].A-304 or321 [II].B-GH3030 [III].C-GH3039 [ IV].IN-INCONEL600 [V].P-310S [VI]. HL-316L
5.Diameter of outer tube:6.0mm; ( diameter from 3.0mm to 12.7mm available)
6.Thickness of outer tube:0.84mm;
7.Inner core element:Fe/CuNi;
8.Diameter of core wire:0.91mm
9.Limited length for piece:60m;
10. Special requirements can be customized .
Thermocouple temperature tolerance:
1.Class I:
Temperature range:-40°C to 375°C,the tolerance is ±1.5°C;
Temperature range:375°C to 750°C,the tolerance is± 0.004
2.Class II:
Temperature range:-40°C to 333°C,the tolerance is ±2.5°C;
Temperature range:333°C to 750°C,the tolerance is± 0.0075
J type
Specification:
1.Model:KJ2-A-6.0;
2.Graduation Mark:J;
3.Wire number:Duplex type( 4 cores);
4.Material of the outer protection tube:A-304/321(0Cr18Ni9) ;
Other types of outer protection tube are available:
[I].A-304 or321 [II].B-GH3030 [III].C-GH3039 [ IV].IN-INCONEL600 [V].P-310S [VI]. HL-316L
5.Diameter of outer tube:6.0mm; ( diameter from 3.0mm to 12.7mm available)
6.Thickness of outer tube:0.84mm;
7.Inner core element:Fe/CuNi;
8.Diameter of core wire:0.91mm
9.Limited length for piece:60m;
10. Special requirements can be customized .
Thermocouple temperature tolerance:
1.Class I:
Temperature range:-40°C to 375°C,the tolerance is ±1.5°C;
Temperature range:375°C to 750°C,the tolerance is± 0.004
2.Class II:
Temperature range:-40°C to 333°C,the tolerance is ±2.5°C;
Temperature range:333°C to 750°C,the tolerance is± 0.0075
