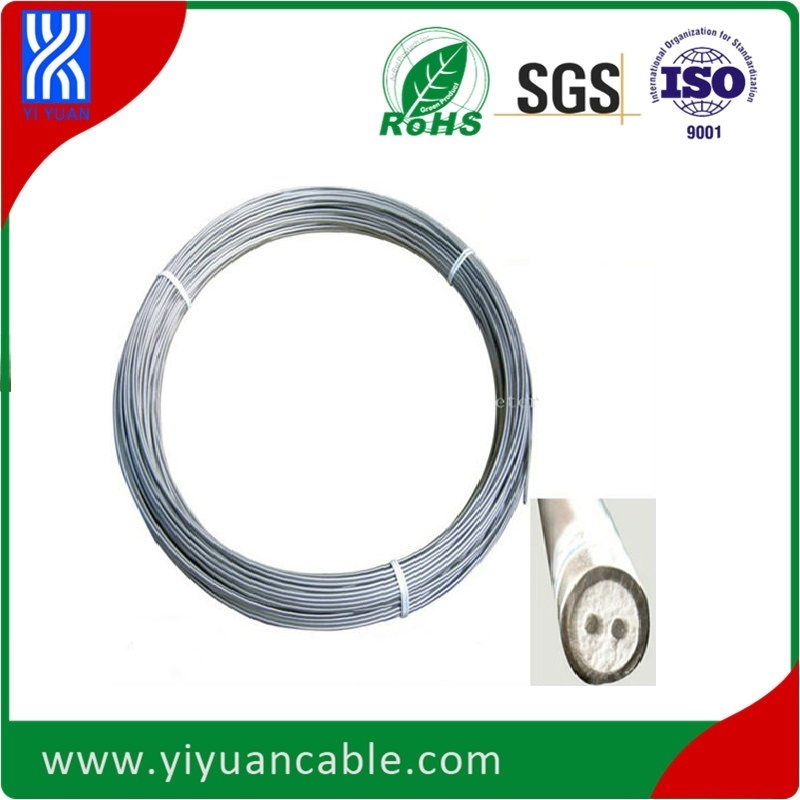

N Type Simplex 2-Core 0.5mm Diameter Stainless Steel Sheath

N Type Simplex 2-Core 0.5mm Diameter Stainless Steel Sheath Mi Thermocouple Cable

Product description：N Type Simplex 2-Core 0.5mm Diameter Stainless Steel Sheath Mi Thermocouple Cable
INQUIRY

0.5mm 321 thermocouple cable
1.IEC 1515,ISO9001:2008 Standards;
2.Long lifetime;
3.wide thermometric scope

N type 0.5mm diameter sheathed thermocouple cable

Specification:
1.Model:KN-A-0.5;
2.Graduation Mark:N;
3.Core number:Simplex type( 2 cores);
4.Material of the outer protection tube:A-304/321(0Cr18Ni9) ;
Other types of outer protection tube are available:
[I].A-304 or321 [II].B-GH3030 [III].C-GH3039 [ IV].IN-INCONEL600 [V].P-310S [V]. HL-316L
5.Diameter of outer tube:0.5mm; ( diameter from 0.5mm to 12.7mm available )
6.Thickness of outer tube:0.07mm;
7.Inner core element: Nicrosil-Nisil ;
8.Diameter of core wire:0.10mm
9.Limited length for piece:100m;
10. Special requirements can be customized .

Package:180-250 meters/coil,4 coils/carton box.

Thermocouple temperature tolerance:
1.Class I:
Temperature range:-40°C to 375°C,the tolerance is ±1.5°C;
Temperature range:375°C to 1000°C,the tolerance is± 0.004
2.Class II:
Temperature range:-40°C to 333°C,the tolerance is ±2.5°C;
Temperature range:333°C to 1200°C,the tolerance is± 0.0075
