Pt100 cable-PFA-TC Braid-PFA

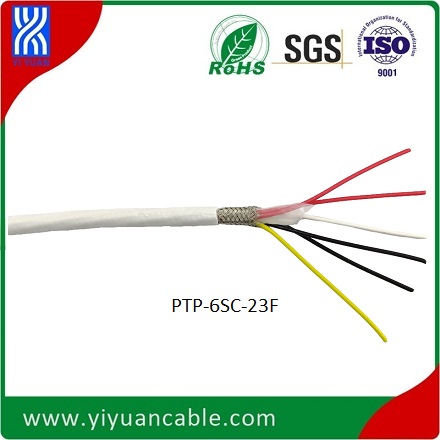

Pt100 rtd 6 wires -RTD sensors extension cable,wire (6 cores copper silver-plated conductor with Teflon PFA insulation + copper tinned threads  braid + PFA -23AWG.)

Material & Dimension Pre-Report
Cable type	RTD extension cable
Product ID	PTP-6SC-23F
Conductor Material	Silver-plated Copper wire
Single Conductor DIA	￠0.22mm
Conductor Construction	7 Inner wires stranded
Insulator Material	PFA 260℃
Insulator Color	Red, Red, White,Black,Black,Yellow
Insulation Dia.	￠1.05mm
Cable Construction	6 cores stranded cable
Inner Braid material	Tinned copper wire
Out sheath Material	PFA 260℃
Out sheath color	White
Overall Dia.	￠4.4mm

Description of RTD sensor and RTD extension cable :

An RTD(Resistance temperature detectors) is a temperature sensor which measures temperature that the resistance of a metal changes with temperature. Actually, an electrical current is transmitted through a piece of metal (the RTD element or resistor) located in close to the area where temperature is to be measured. The resistance value of the RTD element is then measured by an instrument. This resistance value is then correlated to temperature based upon the known resistance characteristics of the RTD element.

We offer wide range of RTD extension cables with variety of insulation PVC, FEP, PFA, Silicon, Fiber glass,polymide, etc. Generally copper instrumentation cables are used to interconnecting RTD sensors with your process instrumentation. Resistance in all wires in RTD cables remain almost same to get the best results.

We can produce copper silver-plated conductor, copper tinned conductor and copper nickel-plated conductor in ANSI code, IEC code,etc.

And we can produce Customized wire,cable according to your requirements(specification).
