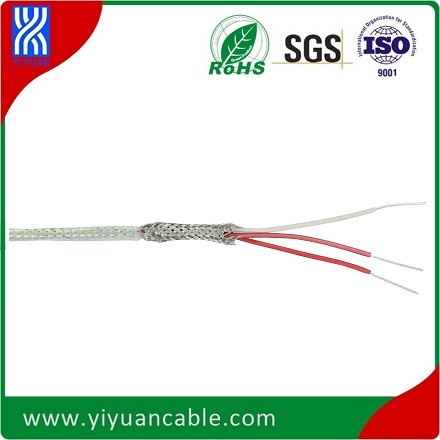

RTD cable-FTF-3SC-24F

Product Item : Model:FTF-3SC-24F
3 cores Teflon FEP/Copper-tinned thread braid/Teflon FEP
Stranded Copper Silver-plated conductor 7*0.2mm
MOQ:500m
Delivery time: 15 days
Product description：This RTD sensors extension cable,wire is 3 cores copper Silver-plated conductor ,Teflon FEP insulation 24AWG with copper-tinned inner braid + FEP out sheath
INQUIRY

Material & Dimension Pre-Report
Cable type	RTD extension cable
Product ID	FTF-3SC-7*0.2
Conductor Material	Silver-plated Copper wire
Single Conductor DIA	￠0.2mm
Conductor Construction	7 Inner wires stranded
Insulator Material	Teflon FEP 200℃
Insulator Color	Red, Red, White
Insulation Dia.	￠1.0mm
Cable Construction	3 cores stranded cable
Inner Braid material	Tinned copper wire
Out sheath Material	Teflon FEP 200℃
Out sheath color	Transparent
Overall Dia.	￠3.2mm

Contact us for RTD catalogue and your customized Rtd sensor extension cable:

Whatsapp/Tel/Wechat: +86 1 3811300279

Email: sales@yiyuancable.com

Below are Yiyuan RTD cable Mfr. Model nos.

Model	Description	Temperature
GG	Fiberglass insulation + Fiberglass out sheath	400°C
GGB	Fiberglass insulation + Fiberglass out sheath+ SSB braid	400°C
F	Teflon FEP insulation	200°C
FF	Teflon FEP insulation with FEP out sheath	200°C
FTF	Teflon FEP + Copper tinned thread braid + FEP out sheath	200°C
FBF	Teflon FEP + SSB + FEP out sheath	200°C
FSF	Teflon FEP + Silver plated copper thread braid + FEP out sheath	200°C
FFB	Teflon FEP + FEP out sheath+ SSB braid	200°C
PP	Teflon PFA insulation with PFA out sheath	260°C
PAP	Teflon PFA + Al-foil + PFA out sheath	260°C
PTP	Teflon PFA + Copper tinned thread braid + PFA out sheath	260°C
PPTP	Teflon PFA + PFA+ Copper tinned thread braid + PFA	260°C
PBP	Teflon PFA + SSB + PFA out sheath	260°C
PPB	Teflon PFA + PFA out sheath+ SSB braid	260°C
VV	PVC insulation + PVC out sheath	105°C
FV	Teflon FEP+ PVC out sheath	105°C
VVB	PVC insulation + PVC out sheath+ SSB braid	105°C
XX	Silicone rubber insulation + Silicone rubber out sheath	180°C
XBX	Silicone rubber insulation + SSB+ Silicone rubber out sheath	180°C
FX	Teflon FEP +Silicone rubber out sheath	180°C
PX	Teflon PFA +Silicone rubber out sheath	180°C
KK	Kapton insulation + Kapton insulation	260°C
HH	High silica insulation + High silica out sheath	800°C

Description of RTD sensor and RTD extension cable

An RTD(Resistance temperature detectors) is a temperature sensor which measures temperature that the resistance of a metal changes with temperature. Actually, an electrical current is transmitted through a piece of metal (the RTD element or resistor) located in close to the area where temperature is to be measured. The resistance value of the RTD element is then measured by an instrument. This resistance value is then correlated to temperature based upon the known resistance characteristics of the RTD element.

We offer wide range of RTD extension cables with variety of insulation PVC, FEP, PFA, Silicon, Fiber glass,polymide, etc. Generally copper instrumentation cables are used to interconnecting RTD sensors with your process instrumentation. Resistance in all wires in RTD cables remain almost same to get the best results.
