Pt100 rtd 4 wires-RTD cable-Teflon PFA

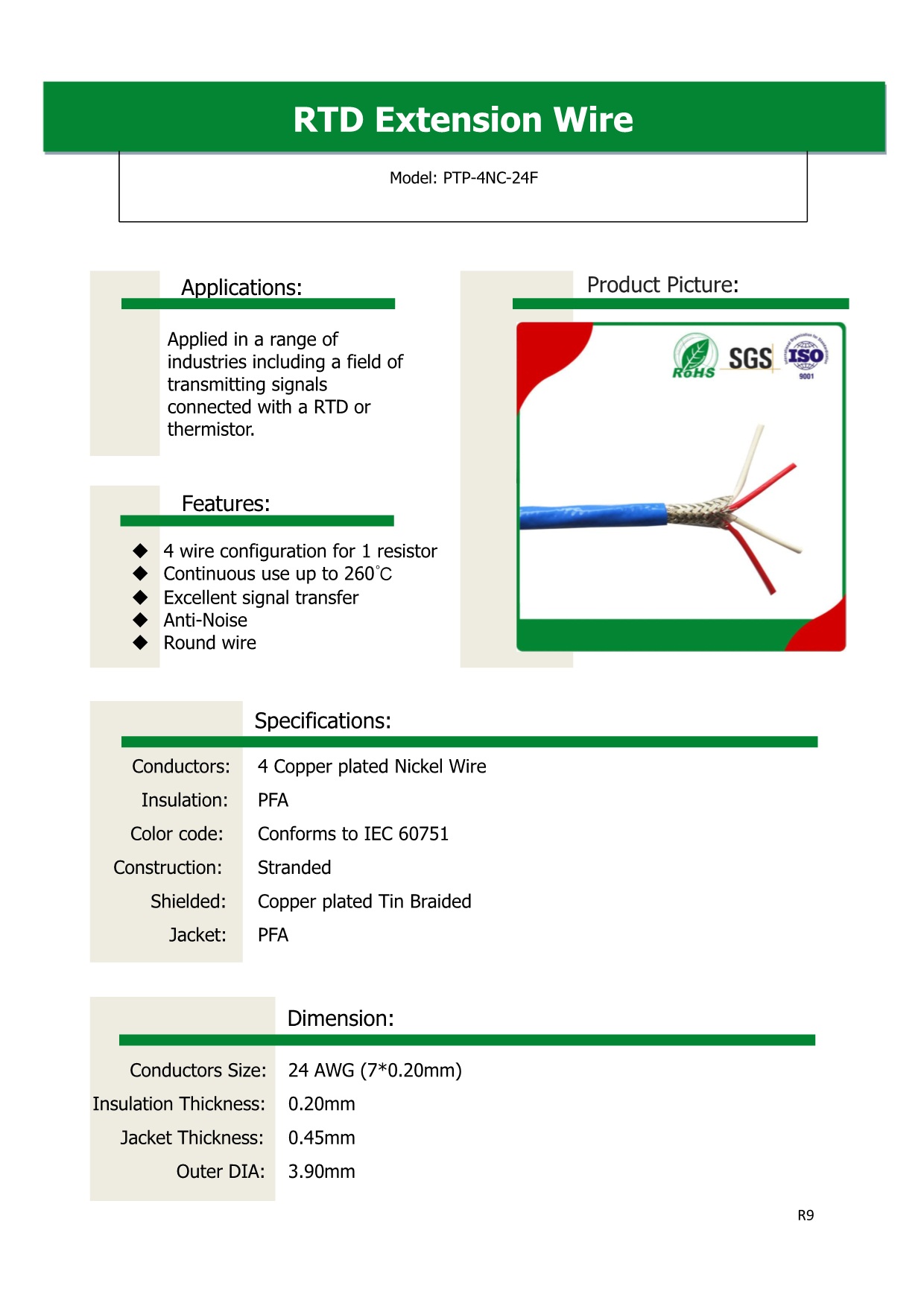

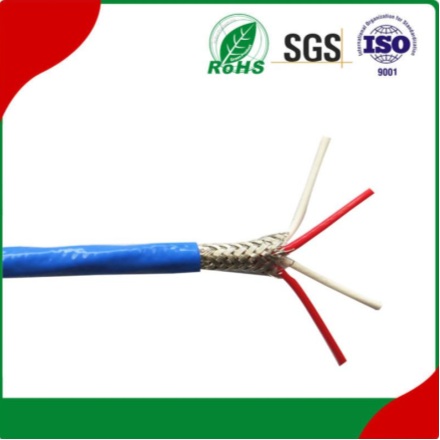

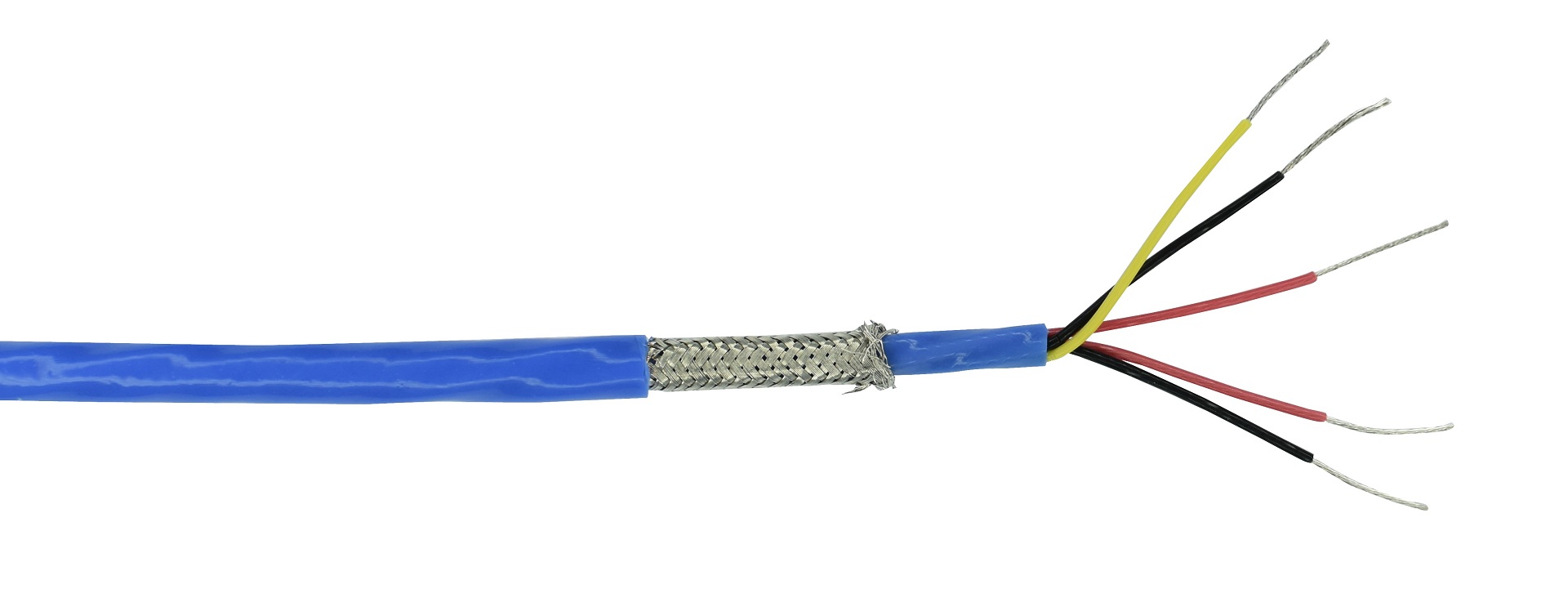

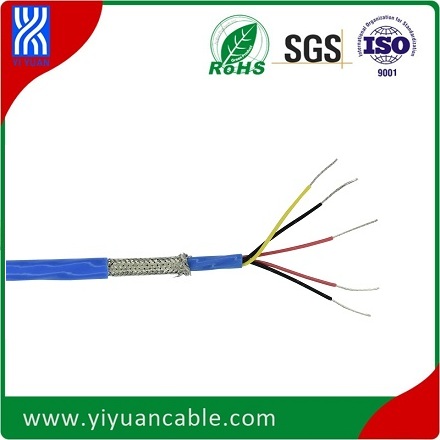

You can find more specifications below of this Pt100 rtd 4 wires -RTD sensors extension cable,wire (4 cores copper nickel-plated conductor with Teflon PFA insulation + copper tinned braid -24AWG.)

Description of RTD and RTD extension cable

An RTD(Resistance temperature detectors) is a temperature sensor which measures temperature that the resistance of a metal changes with temperature. Actually, an electrical current is transmitted through a piece of metal (the RTD element or resistor) located in close to the area where temperature is to be measured. The resistance value of the RTD element is then measured by an instrument. This resistance value is then correlated to temperature based upon the known resistance characteristics of the RTD element.

We offer wide range of RTD extension cables with variety of insulation PVC, FEP, PFA, Silicon, Fiber glass,polymide, etc. Generally copper instrumentation cables are used to interconnecting RTD sensors with your process instrumentation. Resistance in all wires in RTD cables remain almost same to get the best results.

We can produce copper silver-plated conductor, copper tinned conductor and copper nickel-plated conductor in ANSI code, IEC code,etc.

And we can produce Customized wire,cable according to your requirements(specification).
