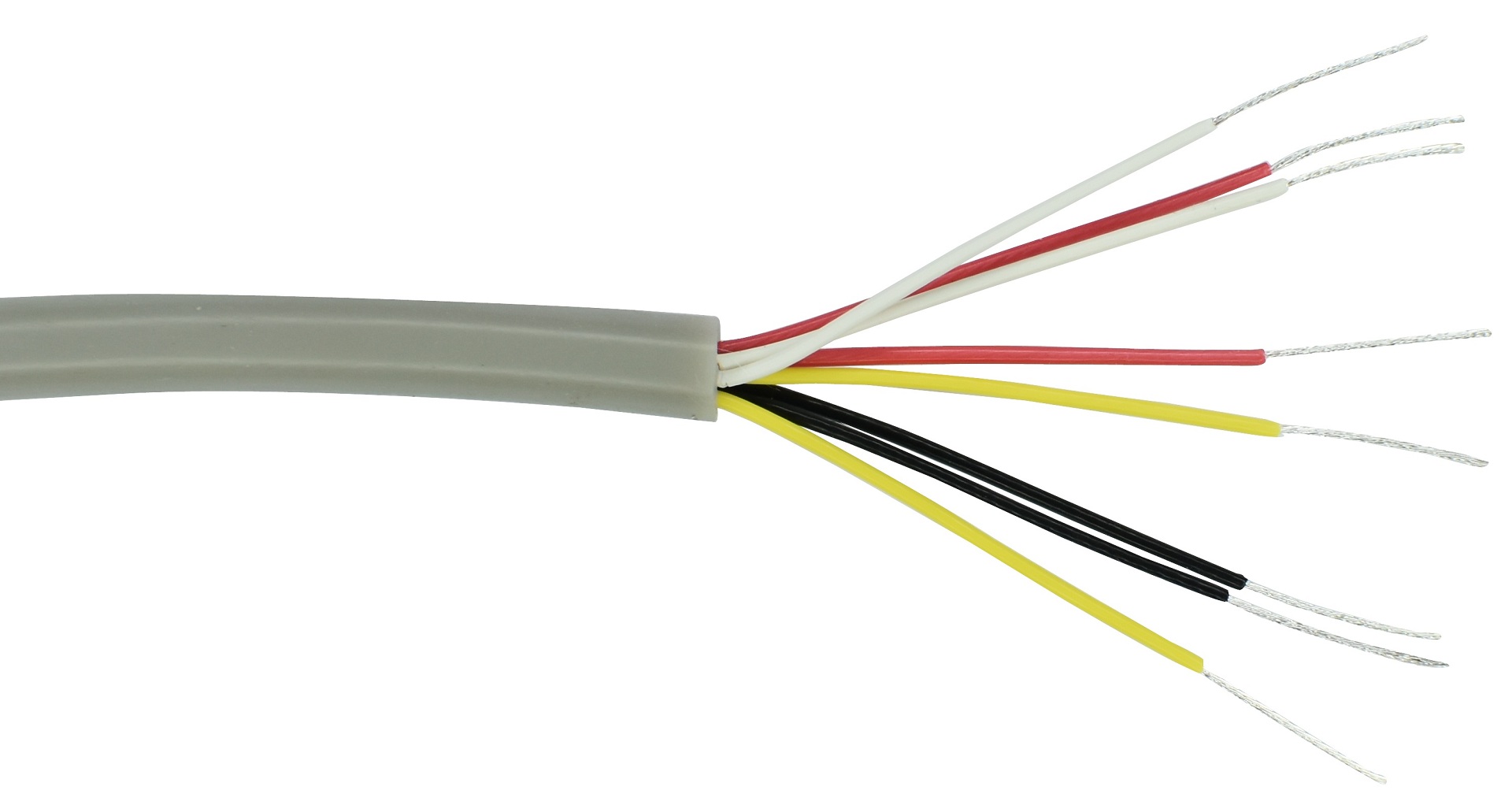

RTD cable-FEP+ Silicone-8cores

Material & Dimension Pre-Report
Product ID	FX-7SC-8*0.15
Conductor Material	Copper plated Silver
Single Conductor DIA	0.20mm
Conductor Construction	7 Inner Wires Stranded
Insulator Material	FEP 200°C
Insulator Color	RED-RED-GREY-GREY-YELLOW-YELLOW-WHITE-WHITE
Cable Construction	7 Wires Stranded
Jacket Material	Silicone
Jacket Color	BLACK
Insulated DIA	0.8mm
Cable DIA	5.8mm
2017.05.18

Description of RTD and RTD extension cable

An RTD(Resistance temperature detectors) is a temperature sensor which measures temperature that the resistance of a metal changes with temperature. Actually, an electrical current is transmitted through a piece of metal (the RTD element or resistor) located in close to the area where temperature is to be measured. The resistance value of the RTD element is then measured by an instrument. This resistance value is then correlated to temperature based upon the known resistance characteristics of the RTD element.

We offer wide range of RTD extension cables with variety of insulation PVC, FEP, PFA, Silicon, Fiber glass,polymide, etc. Generally copper instrumentation cables are used to interconnecting RTD sensors with your process instrumentation. Resistance in all wires in RTD cables remain almost same to get the best results.

You can find more specifications below of this RTD sensors extension cable,wire (3 cores copper silver-plated conductor with fiberglass insulation + SSbraid -24AWG.)

We can produce copper silver-plated conductor, copper tinned conductor and copper nickel-plated conductor in ANSI code, IEC code,etc.

And we can produce according to your requirements(specification).
