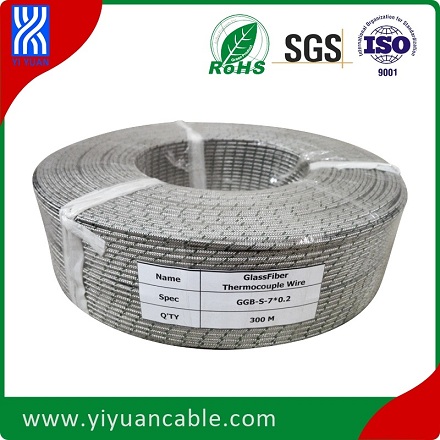

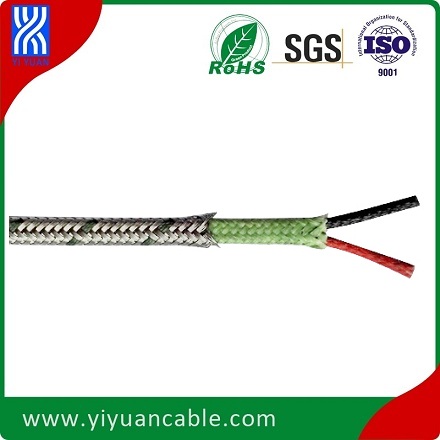

You can find more specifications below of this thermocouple cable S type fiberglass insulated.
We can produce ANSI code, IEC code,etc.
And we can produce according to your requirements(specification).
Material & Dimension Report | |
Product ID | GGB-RSX-7*0.20 |
Conductor Material | R/SXp:Cu, R/SXn:CuNi |
Single Inner Wire DIA | ¢0.2mm |
Inner Wire Construction | 7 Inner Wires Stranded |
Insulator Material | Fiberglass |
Insulator Color | R/SXp:Black, R/SXn:Red |
Cable Construction | Parallel |
Jacket Material | Fiberglass |
Jacket Color | Green |
Over Braid Material | Stainless Steel (with Green Trace Thread) |
Insulated DIA | ¢1.25mm |
Cable DIA | 2.4mm*3.5mm |
Cable weight | 16.5kg/km |
If you have special requirements please feel free to message or email us!
Whatsapp/Tel/Wechat: +86 13811300279
Email: sales@yiyuancable.com
Below is our regularl thermocouple cable model no., and some basic thermocoule cable knowledge including Conductor alloy materials and ANSI ,IEC color code ,descritpion!
Yiyuan Thermocouple cable Mfr. Model no.:
Model |
Description |
Temperature |
GG |
Fiberglass insulation + Fiberglass out sheath |
400°C |
GGB |
Fiberglass insulation + Fiberglass out sheath+ SSB braid |
400°C |
GB |
Fiberglass insulation + SSB braid |
400°C |
FF |
Teflon FEP insulation with FEP out sheath |
200°C |
FTF |
Teflon FEP + Copper tinned thread braid + FEP out sheath |
200°C |
FFB |
Teflon FEP + FEP out sheath+ SSB braid |
200°C |
FB |
FEP insulation+ SSB braid |
200°C |
PP |
Teflon PFA insulation with PFA out sheath |
260°C |
PTP |
Teflon PFA + Copper tinned thread braid + PFA out sheath |
260°C |
PPB |
Teflon PFA + PFA out sheath+ SSB braid |
260°C |
PB |
Teflon PFA insulation+ SSB braid |
260°C |
VV |
PVC insulation + PVC out sheath |
105°C |
FV |
Teflon FEP+ PVC out sheath |
105°C |
VVB |
PVC insulation + PVC out sheath+ SSB braid |
105°C |
XX |
Silicone rubber insulation + Silicone rubber out sheath |
180°C |
PX |
Teflon PFA +Silicone rubber out sheath |
180°C |
KK |
Kapton insulation + Kapton insulation |
260°C |
HH |
High silica insulation + High silica out sheath |
800°C/1100°C |
Conductor Alloy material
Type |
Positive |
Negative |
J |
Fe |
Cu-Ni |
K |
Ni-Cr |
Ni-Al |
T |
Cu |
Cu-Ni |
E |
Ni-Cr |
Cu-Ni |
N |
Ni-Cr-Si |
Ni-Si-Mg |
R/SX |
Cu |
Cu-Ni |
U |
Cu |
Cu |
B |
Pt-30%Rh |
Pt-60% Rh |
ANSI color code: TC grade
Type |
Postive |
Negative |
Out sheath |
J |
White |
Red |
Brown |
K |
Yellow |
Red |
Brown |
T |
Blue |
Red |
Brown |
E |
Violet |
Red |
Brown |
N |
Orange |
Red |
Brown |
R/SX |
\ |
\ |
\ |
U |
\ |
\ |
\ |
B |
\ |
\ |
\ |
ANSI color code: Extension cable grade
Type |
Postive |
Negative |
Out sheath |
J |
White |
Red |
Black |
K |
Yellow |
Red |
Yellow |
T |
Blue |
Red |
Blue |
E |
Violet |
Red |
Violet |
N |
Orange |
Red |
Orange |
R/SX |
Black |
Red |
Green |
U |
Black |
Red |
White |
B |
Grey |
Red |
Grey |
IEC color code :TC grade
Type |
Postive |
Negative |
Out sheath |
J |
Black |
White |
Black |
K |
Green |
White |
Green |
T |
Brown |
White |
Brown |
E |
Violet |
White |
Violet |
N |
Pink |
White |
Pink |
R/SX |
Orange |
White |
Orange |
U |
White |
Red |
White |
B |
Grey |
White |
Grey |
Description of thermocouple and thermocouple wire, cable
