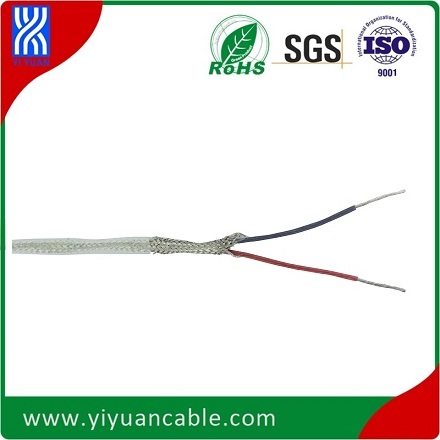

TC-FEP/inner braid/FEP-J type-24F

Product Item : Model:FTF-J-24F
Teflon Fep insulated/Tinned copper thread inner braid/ FEP
Stranded conductor 7*0.2mm
MOQ:500m
Delivery time: 15 days
Product description：This J type thermocouple cable is telfon FEP insulation FEP out sheath with inner braid AWG 24.
INQUIRY

You can find more specifications below of this thermocouple wire,cable J type teflon FEP insulation

Material & Dimension Pre-Report
Cable type	J type Thermocuople cable
Product ID	FTF-J-24F
Conductor Material	Jp:Fe, Jn:CuNi
Single Conductor DIA	￠0.2mm
Conductor Construction	7 Inner wires stranded
Insulator Material	Teflon FEP-200°C
Insulator Color	Jp: White, Jn: Red
Insulation Dia.	1.0mm
Inner braid	Copper-tinned wire braid
Cable Construction	1 Pair stranded cable
Out sheath Material	Teflon FEP-200°C Transparent
Out sheath color	Black
Overall Dia.	2.1mm*3.1.mm

If you have special requirements please feel free to message or email us!

Whatsapp/Tel/Wechat: +86 1 3811300279

Email: sales@yiyuancable.com

Below is our regularl thermocouple cable model no., and some basic thermocoule cable knowledge including Conductor alloy materials and ANSI ,IEC color code ,descritpion!

Yiyuan Thermocouple cable Mfr. Model no.:

Model	Description	Temperature
GG	Fiberglass insulation + Fiberglass out sheath	400°C
GGB	Fiberglass insulation + Fiberglass out sheath+ SSB braid	400°C
GB	Fiberglass insulation + SSB braid	400°C
FF	Teflon FEP insulation with FEP out sheath	200°C
FTF	Teflon FEP + Copper tinned thread braid + FEP out sheath	200°C
FFB	Teflon FEP + FEP out sheath+ SSB braid	200°C
FB	FEP insulation+ SSB braid	200°C
PP	Teflon PFA insulation with PFA out sheath	260°C
PTP	Teflon PFA + Copper tinned thread braid + PFA out sheath	260°C
PPB	Teflon PFA + PFA out sheath+ SSB braid	260°C
PB	Teflon PFA insulation+ SSB braid	260°C
VV	PVC insulation + PVC out sheath	105°C
FV	Teflon FEP+ PVC out sheath	105°C
VVB	PVC insulation + PVC out sheath+ SSB braid	105°C
XX	Silicone rubber insulation + Silicone rubber out sheath	180°C
PX	Teflon PFA +Silicone rubber out sheath	180°C
KK	Kapton insulation + Kapton insulation	260°C
HH	High silica insulation + High silica out sheath	800°C
