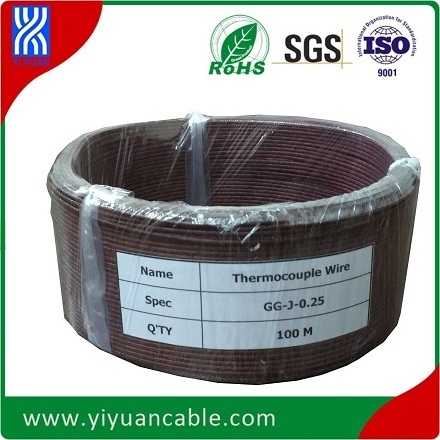

Thermocouple cable-J-Fiberglass/FG

Product Item : Model no.:GG-J-0.25mm
Fiberglass/ Fiberglass
Stranded conductor 0.25mm solid
MOQ:500m
Delivery time: 10 days
Product description：This Thermocouple wire, cable is J type fiberglass insulated
INQUIRY

You can find more specifications below of this thermocouple wire,cable J type fiberglass insulated.

Material & Dimension Pre-Report
Product ID	GG-J-0.25mm
Conductor Material	Jp:Fe, Jn:CuNi
Single Inner Wire DIA	￠0.25mm
Insulator Material	Fiber Glass
Insulator Color	Jp: White, Jn: Red
Cable Construction	Parallel
Jacket Material	Fiber Glass
Jacket Color	Black
Insulated DIA	￠0.85mm
Cable DIA	1.7*2.5mm

If you have special requirements please feel free to message or email us!

Whatsapp/Tel/Wechat: +86 1 3811300279

Email: sales@yiyuancable.com

Below is our regularl thermocouple cable model no., and some basic thermocoule cable knowledge including Conductor alloy materials and ANSI ,IEC color code ,descritpion!

Yiyuan Thermocouple cable Mfr. Model no.:

Model	Description	Temperature
GG	Fiberglass insulation + Fiberglass out sheath	400°C
GGB	Fiberglass insulation + Fiberglass out sheath+ SSB braid	400°C
GB	Fiberglass insulation + SSB braid	400°C
FF	Teflon FEP insulation with FEP out sheath	200°C
FTF	Teflon FEP + Copper tinned thread braid + FEP out sheath	200°C
FFB	Teflon FEP + FEP out sheath+ SSB braid	200°C
FB	FEP insulation+ SSB braid	200°C
PP	Teflon PFA insulation with PFA out sheath	260°C
PTP	Teflon PFA + Copper tinned thread braid + PFA out sheath	260°C
PPB	Teflon PFA + PFA out sheath+ SSB braid	260°C
PB	Teflon PFA insulation+ SSB braid	260°C
VV	PVC insulation + PVC out sheath	105°C
FV	Teflon FEP+ PVC out sheath	105°C
VVB	PVC insulation + PVC out sheath+ SSB braid	105°C
XX	Silicone rubber insulation + Silicone rubber out sheath	180°C
PX	Teflon PFA +Silicone rubber out sheath	180°C
KK	Kapton insulation + Kapton insulation	260°C
HH	High silica insulation + High silica out sheath	800°C

Conductor Alloy material

Type	Positive	Negative
J	Fe	Cu-Ni
K	Ni-Cr	Ni-Al
T	Cu	Cu-Ni
E	Ni-Cr	Cu-Ni
N	Ni-Cr-Si	Ni-Si-Mg
R/SX	Cu	Cu-Ni
U	Cu	Cu
B	Pt-30%Rh	Pt-60% Rh

ANSI color code: TC grade

Type	Postive	Negative	Out sheath
J	White	Red	Brown
K	Yellow	Red	Brown
T	Blue	Red	Brown
E	Violet	Red	Brown
N	Orange	Red	Brown
R/SX	\	\	\
U	\	\	\
B	\	\	\

ANSI color code: Extension cable grade

Type	Postive	Negative	Out sheath
J	White	Red	Black
K	Yellow	Red	Yellow
T	Blue	Red	Blue
E	Violet	Red	Violet
N	Orange	Red	Orange
R/SX	Black	Red	Green
U	Black	Red	White
B	Grey	Red	Grey

IEC color code :TC grade

Type	Postive	Negative	Out sheath
J	Black	White	Black
K	Green	White	Green
T	Brown	White	Brown
E	Violet	White	Violet
N	Pink	White	Pink
R/SX	Orange	White	Orange
U	White	Red	White
B	Grey	White	Grey
