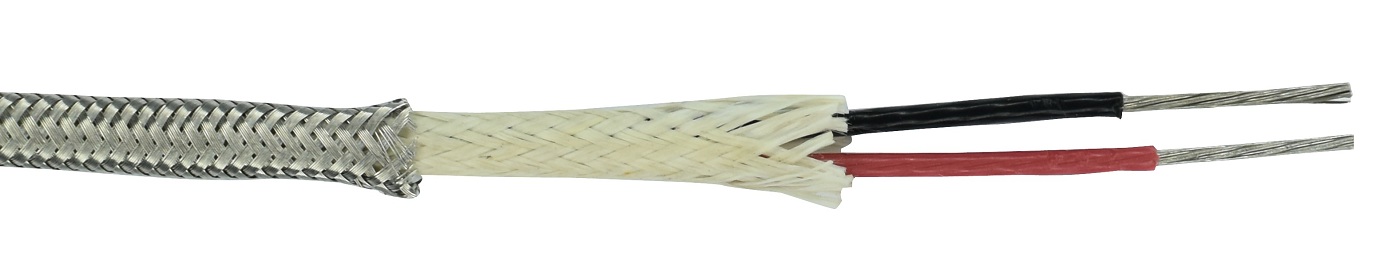

This Thermocouple cable is K type Teflon FEP insulation with Fiberglass out sheath and SSB of AWG 20, stranded 7*0.3mm.
Material & Dimension Pre-Report |
|
Cable type |
K type Thermocouple cable |
Model no. |
FGB-K-20F |
Conductor Material |
Kp:Ni-Cr,Kn:Ni-Al |
Single Inner Wire DIA |
¢0.30mm |
Inner Wire Construction |
7 Inner Wires Stranded |
Insulator Material |
Teflon FEP-200°C |
Insulator Color |
Kp: Red, Kn: Black |
Insulated DIA |
¢1.4mm |
Filling Material |
Fiberglass |
Jacket Material |
Fiberglass Braided |
Jacket Color |
White |
Jacket Size |
2.0mm*3.4mm |
Over Braid Material |
Stainless Steel Braid |
Cable Construction |
Parallel |
Cable Size |
2.4mm*3.8mm |
Yiyuan POPULAR Thermocouple cable Mfr. Model nos.:
Model
Description
Temperature
GG
Fiberglass insulation + Fiberglass out sheath
400°C
GGB
Fiberglass insulation + Fiberglass out sheath+ SSB
braid
400°C
F
Teflon FEP insulation
200°C
FF
Teflon FEP insulation with FEP out sheath
200°C
FAF
Teflon FEP insulation + AL-pet foil shield + Teflon
FEP
200°C
FTF
Teflon FEP + Copper tinned thread braid + FEP out
sheath
200°C
FBF
Teflon FEP + SSB + FEP out sheath
200°C
FSF
Teflon FEP + Silver plated copper thread braid + FEP
out sheath
200°C
FFB
Teflon FEP + FEP out sheath+ SSB braid
200°C
FGB
Teflon FEP + Fiberglass + SSB braid
200°C
PP
Teflon PFA insulation with PFA out sheath
260°C
PAP
Teflon PFA + Al-foil + PFA out sheath
260°C
PTP
Teflon PFA + Copper tinned thread braid + PFA out
sheath
260°C
PPTP
Teflon PFA + PFA+ Copper tinned thread braid + PFA
260°C
PBP
Teflon PFA + SSB + PFA out sheath
260°C
PPB
Teflon PFA + PFA out sheath+ SSB braid
260°C
VV
PVC insulation + PVC out sheath
105°C
FV
Teflon FEP+ PVC out sheath
105°C
VVB
PVC insulation + PVC out sheath+ SSB braid
105°C
XX
Silicone rubber insulation + Silicone rubber out
sheath
180°C
XBX
Silicone rubber insulation + SSB+ Silicone rubber
out sheath
180°C
FX
Teflon FEP +Silicone rubber out sheath
180°C
PX
Teflon PFA +Silicone rubber out sheath
180°C
KK
Kapton insulation + Kapton insulation
260°C
HH
High silica insulation + High silica out sheath
800°C
