thermocouple cable T type kapton
thermocouple cable T type kapton
- Product Item : Model:KK-T-24F
- Polymide insulation with Polymide
- Stranded conductor 7*0.2mm
- MOQ:500m
- Delivery time: 10 days

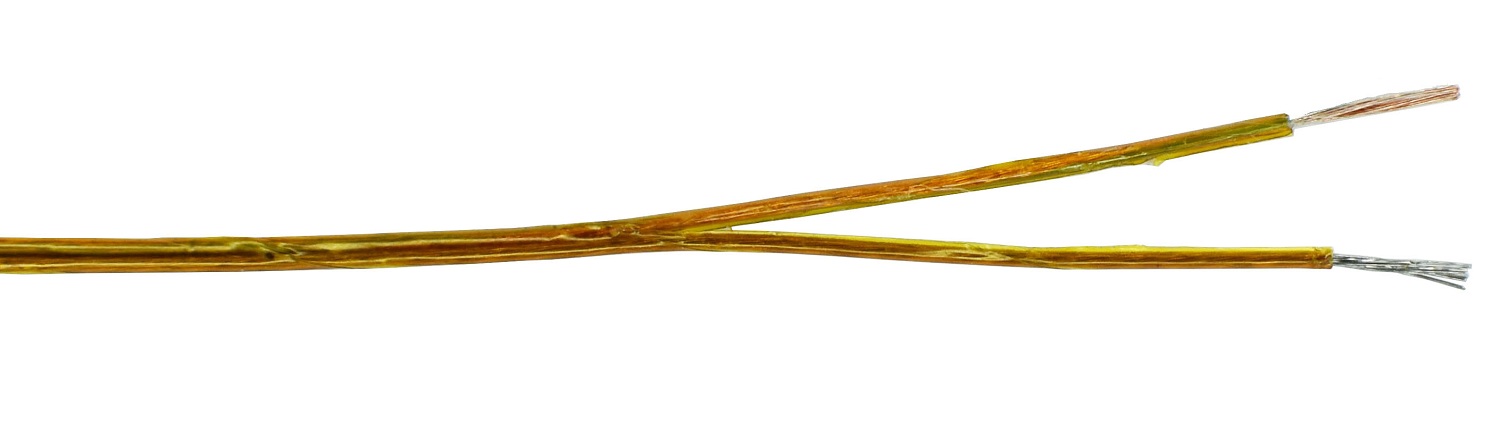

- Product description：This Thermocouple cable is T type polymide (kapton) insulation with polymide(kapton) out sheath of AWG 24, stranded 7*0.2mm.
Click above pic. to get bigger pics.
This Thermocouple cable T type polymide(Kapton) insulation with polymide(Kapton) out sheath of AWG 24, stranded 7*0.2mm.
| Material & Dimension Pre-Report | |
| Cable type | Thermocuople T type cable |
| Product ID | KK-T-7*0.2 |
| Conductor Material | Tp:Cu , Tn:Cu-Ni |
| Single Conductor DIA | ￠0.2mm |
| Conductor Construction | 7 Inner wires stranded |
| Insulator Material | Kapton |
| Insulator Color | Kapton natural color, there is a color strip for Tp |
| Cable Construction | 1 Pair flat cable |
| Out sheath Material | Kapton |
| Out sheath color | Kapton natural color |
| Overall Dia. | 1.15*1.75mm |
To
be the professional China thermo cable factory we can produce
almost all types of thermocouple cable, please check our index :
https://www.yiyuancable.com/new/Index-of-our-thermocouple-wire-cable.html
Click below to check color code and wire insulation identification details:
https://www.yiyuancable.com/new/Color-code-standards.html
