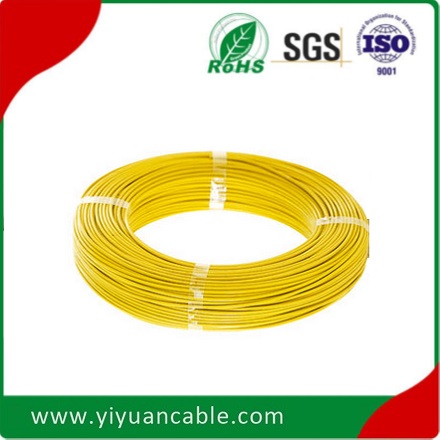

High
temperature wire and cable represent a vast range of wires which
continue to perform at increased and elevated temperatures.
Yiyuan
has designed a specialized family of wire and cable products that can
take the heat. All of these high temperature cables can withstand
applications in continuous heat.
Normal demands on high temperature cable is working under 200 °C and 250 °C we use teflon FEP/PFA and silicon to be the insualtion materials. But we still can produce high temperature cable reach up to 800°C with high silica material. If you need please contact us for specification!
Below is our high temperature cable infor. of types,size,cable structures,specifications,etc.
If you have special requirements please feel free to message or email us!
High temperature cable types:
|
Model
|
Product name
|
Temperature
|
Voltage
|
|
AF200
|
FEP copper silver-plated wire
|
200°C
|
600V
|
|
AF200X
|
FEP copper tinned wire
|
200°C
|
600V
|
|
AF250
|
PFA nickel or silver plated copper wire
|
250°C
|
600V
|
|
AFT250
|
PTFE silver, nickeled copper
|
250°C
|
600V
|
|
AGR
|
Silicon tinned copper wire
|
200°C
|
600V
|
|
AGRP
|
Silicon+Glass Fiber+Silicon
|
200°C
|
600V
|
|
AFF
|
FEP+FEP or PFA+PFA
|
250°C
|
300V
|
|
YGZ
|
Silicon+Silicon
|
200°C
|
300V
|
|
YGZF
|
FEP+ Silicon
|
200°C
|
300V
|
|
AFPF
|
PFA+braid+PFA
|
250°C
|
300V
|
|
YGZP
|
Silicon +braid+Silicon
|
200°C
|
300V
|
|
YGZPF
|
FEP +braid+Silicon
|
200°C
|
300V
|
High temperature cable structure:
It has excellent corrosion resistance, oil resistance, strong acid resistance, strong alkali resistance, strong oxidant, etc.
It has excellent electrical
insulation performance, high voltage resistance, low high frequency
loss, no moisture absorption, high insulation resistance, excellent fire
resistance, aging resistance and long service life.
In the electronic industry, it can
be used for temperature compensation wire, low temperature wire, high
temperature heating wire, aging resistant wire and flame retardant wire;
In the household electrical
appliances industry, it can be used for internal wiring of air
conditioner, microwave oven, electronic disinfection cabinet, electric
rice burger, electronic hot water bottle, electric heater, oven,
electric frying pan, lamp decoration, etc.
High temperature wire Specification, structure and technical parameters：
nominal cross-section area
（mm²）
|
Conductor structure
Number/Wire Diameter （mm）
|
Insulation thickness
（mm）
|
External diameter of insulation
（mm）
|
DC Resistance of Conductor at 20 Temperature 20 ℃
（Ω/km）
|
Packaging length
（m）
|
|
0.035
|
7 × 0.08
|
0.20
|
0.60
|
525
|
500
|
|
0.05
|
7 × 0.10
|
0.20
|
0.70
|
330
|
500
|
|
0.08
|
7 × 0.12
|
0.22
|
0.80
|
227
|
500
|
|
0.12
|
7 × 0.15
|
0.25
|
0.95
|
150
|
500
|
|
0.14
|
7 × 0.16
|
0.17
|
0.82
|
126
|
500
|
|
0.20
|
7 × 0.20
|
0.30
|
1.20
|
83.5
|
500
|
|
0.35
|
19 × 0.16
|
0.30
|
1.40
|
49.5
|
500
|
|
0.50
|
19 × 0.18
|
0.30
|
1.60
|
36.0
|
200
|
|
0.75
|
19 × 0.23
|
0.35
|
1.85
|
22.7
|
200
|
|
|
|
|
|
|
|
1.0
|
19 × 0.26
|
0.35
|
2.00
|
19.0
|
200
|
|
1.2
|
19 × 0.28
|
0.35
|
2.10
|
15.3
|
200
|
|
1.5
|
19 × 0.32
|
0.40
|
2.40
|
11.7
|
200
|
|
2.0
|
19 × 0.37
|
0.40
|
2.65
|
9.45
|
200
|
|
2.5
|
19 × 0.41
|
0.50
|
3.10
|
6.86
|
100
|
|
4.0
|
37 × 0.37
|
0.50
|
3.60
|
4.51
|
100
|
|
6.0
|
37 × 0.45
|
0.50
|
4.20
|
3.05
|
100
|
|
8.0
|
133 × 0.28
|
0.5
|
5.20
|
2.16
|
100
|
|
10
|
133 × 0.32
|
0.50
|
5.80
|
1.68
|
100
|
|
16
|
133 × 0.39
|
0.60
|
7.00
|
1.13
|
100
|
|
20
|
133 × 0.45
|
0.60
|
8.0
|
0.886
|
100
|
|
25
|
196 × 0.40
|
0.6
|
8.8
|
0.734
|
100
|
|
35
|
494 × 0.30
|
0.7
|
10.4
|
0.511
|
100
|
|
50
|
396 × 0.40
|
0.8
|
12.2
|
0.358
|
100
|
|
70
|
551 × 0.40
|
1.0
|
14.6
|
0.270
|
100
|
|
95
|
760 × 0.40
|
1.2
|
17.2
|
0.210
|
100
|
|
Note: According to the technical agreement between the two parties, products of other specifications can be produced.
|
