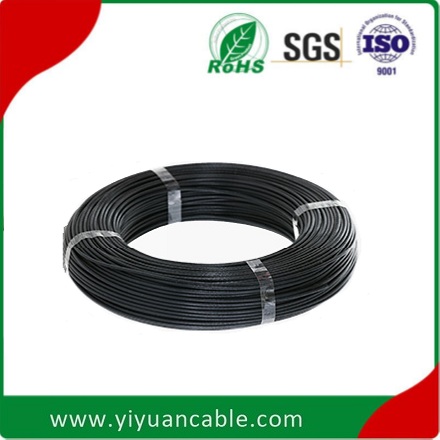

High temperature wire AFF250
High temperature wire AFF250
- Insulation：PFA（250℃）Teflon
- Sheath：PFA（250℃）Teflon
- Tin-plated conductor,Solid or stranded
- working temperature：-65～+250℃
- Product description：High temperature wire Model no.: AFF250 Insulation：PFA（250℃）Teflon Sheath：PFA（250℃）Teflon Tin-plated conductor,Solid or stranded Standard：Q/IRMV1－2008 Rated voltage：300/500V worki
High temperature wire and cable represent a vast range of wires which continue to perform at increased and elevated temperatures.
Yiyuan has designed a specialized family of wire and cable products that can take the heat. All of these high temperature cables can withstand applications in continuous heat.
Our family of high temperature wire & cable is available in many configurations and gauge sizes for power or control applications commonly used for the following:
• Casting furnaces
• Weld robotic cells
• Electric arc furnaces
• Refineries
• Blast furnaces
• Die cast plants
• Utility power stations
• Fire protection equipment
• Plastic molding plants
• Food industry professional ovens
Normal demands on high temperature cable is working under 200 °C and 250 °C we use teflon FEP/PFA and silicon to be the insualtion materials. But we still can produce high temperature cable reach up to 800°C with high silica material. If you need please contact us for specification!
Below is our high temperature cable infor. of types,size,cable structures,specifications,etc.
If you have special requirements please feel free to message or email us!
High temperature cable types:
|
Model |
Product name | Temperature | Voltage |
|
AF200 |
FEP copper silver-plated wire |
200°C |
600V |
| AF200X |
FEP copper tinned wire |
200°C |
|
|
AF250 |
PFA nickel or silver plated copper wire | 250°C | 600V |
| AFT250 |
PTFE silver, nickeled copper |
250°C | 600V |
| AGR | Silicon tinned copper wire | 200°C | 600V |
| AGRP | Silicon+Glass Fiber+Silicon |
200°C |
600V |
| AFF | FEP+FEP or PFA+PFA | 250°C | 300V |
| YGZ | Silicon+Silicon | 200°C | 300V |
| YGZF |
FEP+ Silicon |
200°C | 300V |
| AFPF | PFA+braid+PFA | 250°C | 300V |
| YGZP | Silicon +braid+Silicon |
200°C |
300V |
| YGZPF |
FEP +braid+Silicon |
200°C |
300V |
High temperature cable structure:
Characteristics/uses：
It has excellent corrosion resistance, oil resistance, strong acid resistance, strong alkali resistance, strong oxidant, etc.
It
has excellent electrical insulation performance, high voltage
resistance, low high frequency loss, no moisture absorption, high
insulation resistance, excellent fire resistance, aging resistance and
long service life.
In
the electronic industry, it can be used for temperature compensation
wire, low temperature wire, high temperature heating wire, aging
resistant wire and flame retardant wire;
In
the household electrical appliances industry, it can be used for
internal wiring of air conditioner, microwave oven, electronic
disinfection cabinet, electric rice burger, electronic hot water bottle,
electric heater, oven, electric frying pan, lamp decoration, etc.
High temperature cable Specification, structure and technical parameters：
|
Core Number X Section （mm² ） |
Conductor structure |
Insulation |
Sheath |
||
|---|---|---|---|---|---|
|
Thickness |
Outer diameter
|
Thickness |
Outer diameter |
||
|
2 × 0.12 |
7/0.15 |
0.20 |
0.85 |
0.25 |
2.20 |
|
3 × 0.12 |
7/0.15 |
0.20 |
0.85 |
0.25 |
2.30 |
|
4 × 0.12 |
7/0.15 |
0.20 |
0.85 |
0.25 |
2.60 |
|
5 × 0.12 |
7/0.15 |
0.20 |
0.85 |
0.25 |
2.80 |
|
6 × 0.12 |
7/0.15 |
0.20 |
0.85 |
0.25 |
3.10 |
|
7 × 0.12 |
7/0.15 |
0.20 |
0.85 |
0.30 |
3.15 |
|
10 × 0.12 |
7/0.15 |
0.20 |
0.85 |
0.30 |
4.0 |
|
12 × 0.12 |
7/0.15 |
0.20 |
0.85 |
0.30 |
4.20 |
|
19 × 0.12 |
7/0.15 |
0.20 |
0.85 |
0.35 |
5.0 |
|
2 × 0.2 |
7/0.20 |
0.20 |
1.0 |
0.25 |
2.50 |
|
3 × 0.2 |
7/0.20 |
0.20 |
1.0 |
0.25 |
2.60 |
|
4 × 0.2 |
7/0.20 |
0.20 |
1.0 |
0.25 |
2.90 |
|
5 × 0.2 |
7/0.20 |
0.20 |
1.0 |
0.25 |
3.20 |
|
6 × 0.2 |
7/0.20 |
0.20 |
1.0 |
0.30 |
3.60 |
|
7 × 0.2 |
7/0.20 |
0.20 |
1.0 |
0.30 |
3.60 |
|
10 × 0.2 |
7/0.20 |
0.20 |
1.0 |
0.30 |
4.60 |
|
12 × 0.2 |
7/0.20 |
0.20 |
1.0 |
0.30 |
4.70 |
|
19 × 0.2 |
7/0.20 |
0.20 |
1.0 |
0.40 |
5.80 |
|
2 × 0.35 |
19/0.16 |
0.25 |
1.30 |
0.25 |
3.10 |
|
3 × 0.35 |
19/0.16 |
0.25 |
|
||
